Manufacturer Part Number: | PWR163S-25-3R30J |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Chip Resistor - Surface Mount |
Available Quantity: | 9111 Pieces |
Unit Price: | Quote by Email |
Description: | RES SMD 3.3 OHM 5% 25W DPAK |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PWR163S-25-3R30J Datasheet |
Internal Part Number | 898-PWR163S-25-3R30J | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | PWR163S-25-RC Material Declaration | |
3D Model | PWR163.stp | |
PCN Design/Specification | Date Code Format Feb/2016 | |
Online Catalog | PWR163 Series | |
Category | Resistors | |
Family | Chip Resistor - Surface Mount | |
Manufacturer | Bourns Inc. | |
Series | PWR163 | |
Packaging | Tube | |
Part Status | Active | |
Resistance (Ohms) | 3.3 | |
Tolerance | ±5% | |
Power (Watts) | 25W | |
Composition | Thick Film | |
Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding | |
Temperature Coefficient | ±100ppm/°C | |
Operating Temperature | -55°C ~ 155°C | |

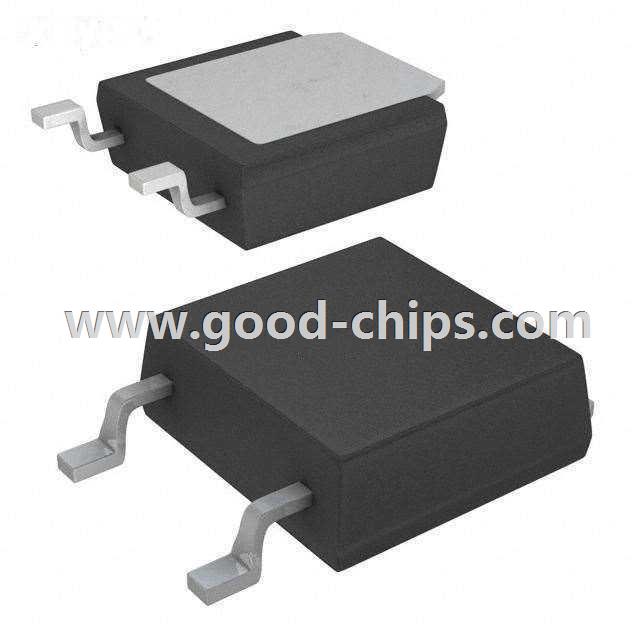

Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | |
Supplier Device Package | DPAK | |
Size / Dimension | 0.320" L x 0.324" W (8.13mm x 8.22mm) | |
Height | 0.110" (2.79mm) | |
Number of Terminations | 2 | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PWR163S-25-3R30J | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PWR163S-25-3R30J is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PWR163S-25-3R30J is new and unused, you can buy PWR163S-25-3R30J Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PWR163S-25-3R30J.
