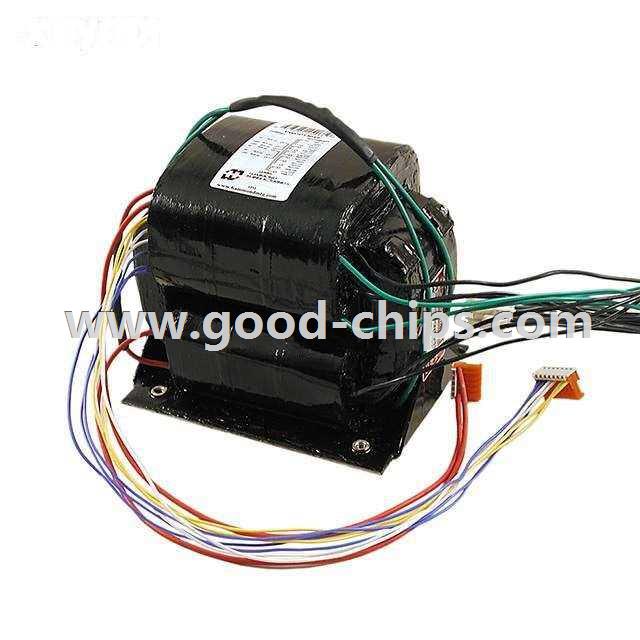

| Manufacturer Part Number: | PWDP13049 |
|---|---|
| Manufacturer: | Hammond Manufacturing |
| Product Category: | Power Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | XFRMR ALPHA TPX-X168 91B AND 99 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PWDP13049 Datasheet |
| Internal Part Number | 898-PWDP13049 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 1 | |
| Category | Transformers | |
| Family | Power Transformers | |
| Manufacturer | Hammond Manufacturing | |
| Series | Peter W. Dahl Design | |
| Part Status | Active | |
| Type | Laminated Core | |
| Voltage - Primary | 100V, 120V | |
| Voltage - Secondary (Full Load) | 2050V, 390V, 105V, 28V, 13.3V | |
| Current - Output (Max) | 500mA, 3A, 7.2A | |
| Primary Winding(s) | - | |
| Secondary Winding(s) | - | |
| Center Tap | Yes | |
| Power - Max | - | |
| Mounting Type | Chassis Mount | |
| Termination Style | Wire Leads | |
| Size / Dimension | 196.85mm L x 158.75mm W | |
| Height - Seated (Max) | 168.27mm | |
| Voltage - Isolation | - | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PWDP13049 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PWDP13049 is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of PWDP13049 is new and unused, you can buy PWDP13049 Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PWDP13049.
