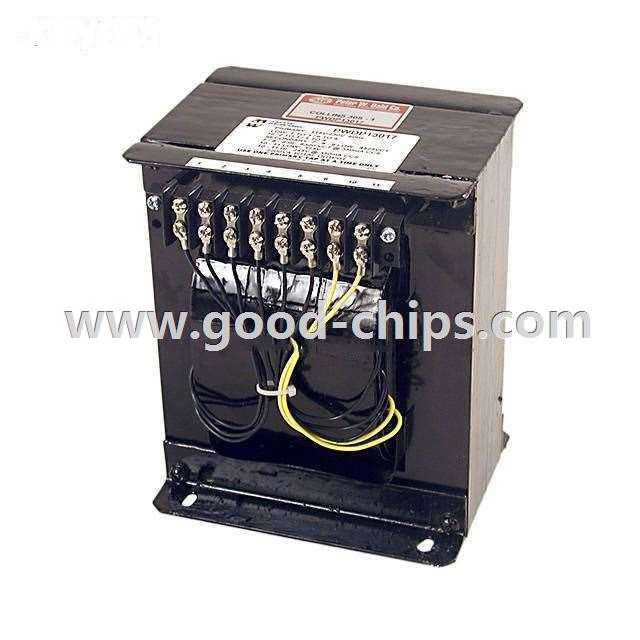

| Manufacturer Part Number: | PWDP13017 |
|---|---|
| Manufacturer: | Hammond Manufacturing |
| Product Category: | Power Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | COLLIN 30S 1 PLT TRNSFRMR LAMNTD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PWDP13017 Datasheet |
| Internal Part Number | 898-PWDP13017 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 1 | |
| Category | Transformers | |
| Family | Power Transformers | |
| Manufacturer | Hammond Manufacturing | |
| Series | Peter W. Dahl Design | |
| Part Status | Active | |
| Type | Laminated Core | |
| Voltage - Primary | 115V, 230V | |
| Voltage - Secondary (Full Load) | 6320V, 245V | |
| Current - Output (Max) | 350mA | |
| Primary Winding(s) | - | |
| Secondary Winding(s) | Dual | |
| Center Tap | - | |
| Power - Max | - | |
| Mounting Type | Chassis Mount | |
| Termination Style | Screw Terminal | |
| Size / Dimension | 181.74mm L x 190.50mm W | |
| Height - Seated (Max) | 241.30mm | |
| Voltage - Isolation | - | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PWDP13017 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PWDP13017 is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of PWDP13017 is new and unused, you can buy PWDP13017 Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PWDP13017.
