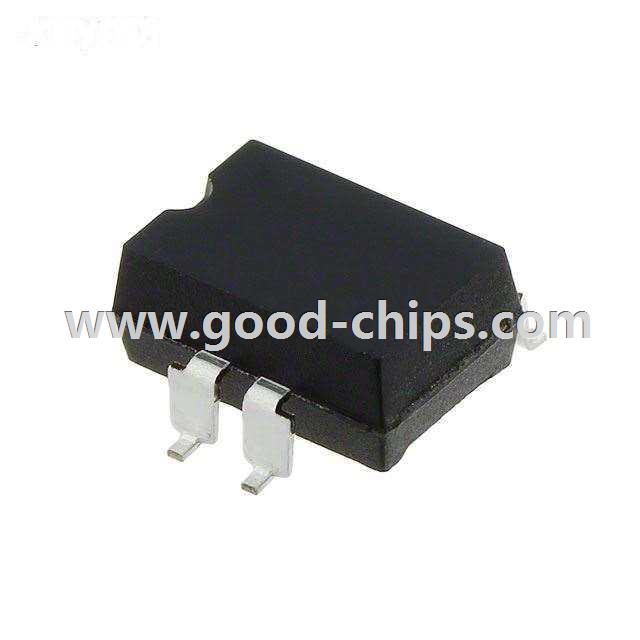

| Manufacturer Part Number: | PVI5050NSPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 17471 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Photovoltaic Output 4000Vrms 1 Channel 8-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PVI5050NSPBF Datasheet |
| Internal Part Number | 898-PVI5050NSPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| PCN Assembly/Origin | MER Devices Fab Site 09/Dec/2013 | |
| PCN Other | MSL Update 05/Sept/2014 | |
| Online Catalog | PVI-NPbF Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Infineon Technologies | |
| Series | PVI | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 4000Vrms | |
| Current Transfer Ratio (Min) | - | |
| Current Transfer Ratio (Max) | - | |
| Turn On / Turn Off Time (Typ) | 300µs, 220µs (Max) | |
| Rise / Fall Time (Typ) | - | |
| Input Type | DC | |
| Output Type | Photovoltaic | |
| Voltage - Output (Max) | 5V | |
| Current - Output / Channel | 5µA | |
| Voltage - Forward (Vf) (Typ) | - | |
| Current - DC Forward (If) (Max) | - | |
| Vce Saturation (Max) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SMD (4 Leads), Gull Wing | |
| Supplier Device Package | 8-SMD | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PVI5050NSPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PVI5050NSPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of PVI5050NSPBF is new and unused, you can buy PVI5050NSPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PVI5050NSPBF.
