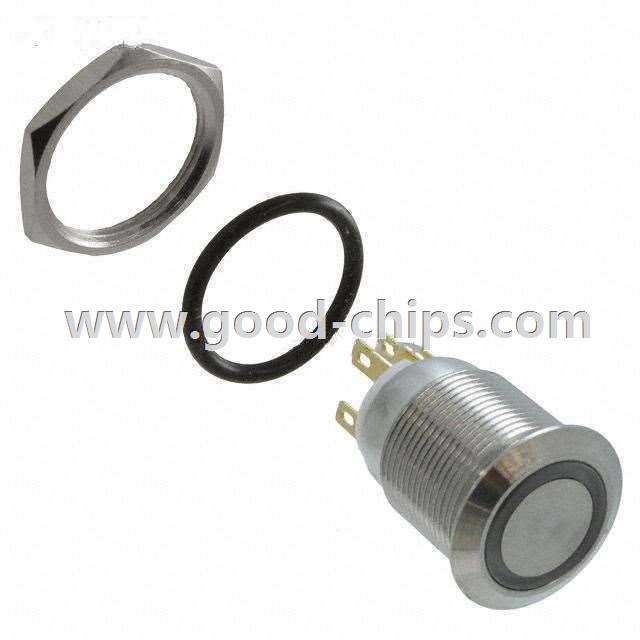

| Manufacturer Part Number: | PV4F2Y0SS-346 |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9021 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch DPST (1-NO, 1-NC) Vandal Resistant, Illuminated Panel Mount, Front |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PV4F2Y0SS-346 Datasheet |
| Internal Part Number | 898-PV4F2Y0SS-346 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | PV4 Series Anti-Vandal Switch | |
| 3D Model | PV4F2Yyyy-3yy.stp | |
| Online Catalog | PV4, LAMB Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | E-Switch | |
| Series | PV4, LAMB | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Vandal Resistant, Illuminated | |
| Circuit | DPST (1-NO, 1-NC) | |
| Switch Function | On-Mom, Off-Mom | |
| Current Rating | 2A (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 48V | |
| Actuator Type | Round, Button, Flush | |
| Color - Actuator/Cap | Silver | |
| Illumination Type, Color | LED, Blue | |
| Illumination Voltage (Nominal) | 125 VAC | |
| Mounting Type | Panel Mount, Front | |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | |
| Features | - | |
| Panel Cutout Dimensions | Circular - 19.00mm Dia | |
| Operating Temperature | -20°C ~ 55°C | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | 50,000 Cycles | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PV4F2Y0SS-346 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PV4F2Y0SS-346 is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of PV4F2Y0SS-346 is new and unused, you can buy PV4F2Y0SS-346 E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PV4F2Y0SS-346.
