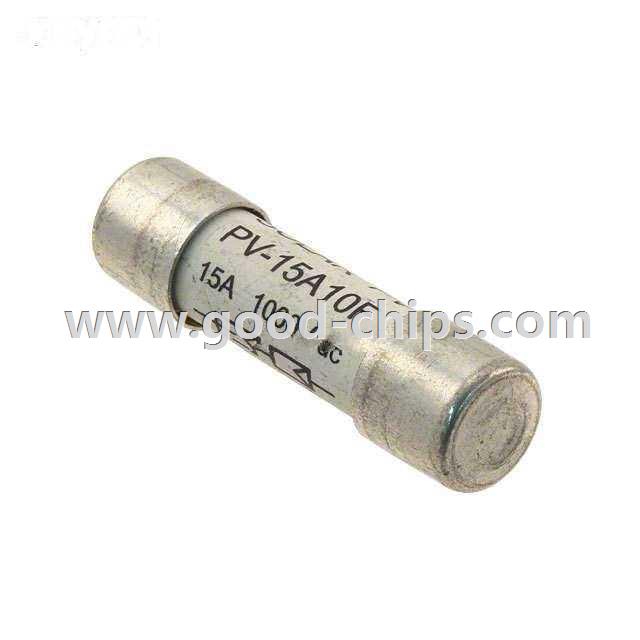

| Manufacturer Part Number: | PV-15A10F |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Electrical, Specialty Fuses |
| Available Quantity: | 9052 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE CARTRIDGE 15A 1KVDC 5AG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PV-15A10F Datasheet |
| Internal Part Number | 898-PV-15A10F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | PV Series | |
| Category | Circuit Protection | |
| Family | Electrical, Specialty Fuses | |
| Manufacturer | Eaton | |
| Series | PV | |
| Packaging | Bulk | |
| Part Status | Active | |
| Fuse Type | Cartridge | |
| Current Rating | 15A | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 1000V (1kV) | |
| Response Time | - | |
| Applications | Solar (Photovoltaic) | |
| Features | - | |
| Class | - | |
| Approvals | CCC, CSA, UL | |
| Operating Temperature | -40°C ~ 90°C | |
| Breaking Capacity @ Rated Voltage | 50kA | |
| Mounting Type | Holder | |
| Package / Case | 5AG, 10mm x 38.1mm | |
| Size / Dimension | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | |
| Melting I²t | 22 | |
| DC Cold Resistance | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PV-15A10F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PV-15A10F is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of PV-15A10F is new and unused, you can buy PV-15A10F Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PV-15A10F.
