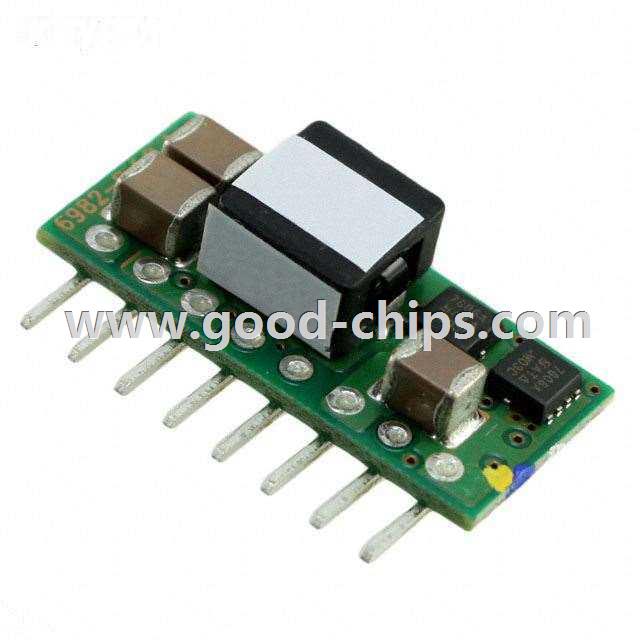

| Manufacturer Part Number: | PTV12010LAH |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | DC DC Converters |
| Available Quantity: | 9050 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE SIP 12VIN 8A ADJ VERT T/H |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTV12010LAH Datasheet |
| Internal Part Number | 898-PTV12010LAH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | PTV12010LAH Specifications | |
| Online Catalog | PTV12010 Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Texas Instruments | |
| Series | PTV12010 | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 10.8V | |
| Voltage - Input (Max) | 13.2V | |
| Voltage - Output 1 | 0.8 ~ 1.8 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 8A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 8-SIP Module | |
| Size / Dimension | 0.90" L x 0.33" W x 0.40" H (22.9mm x 8.4mm x 10.2mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 87% | |
| Power (Watts) - Max | 14.4W | |
| Standard Package | 70 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTV12010LAH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTV12010LAH is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of PTV12010LAH is new and unused, you can buy PTV12010LAH Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTV12010LAH.
