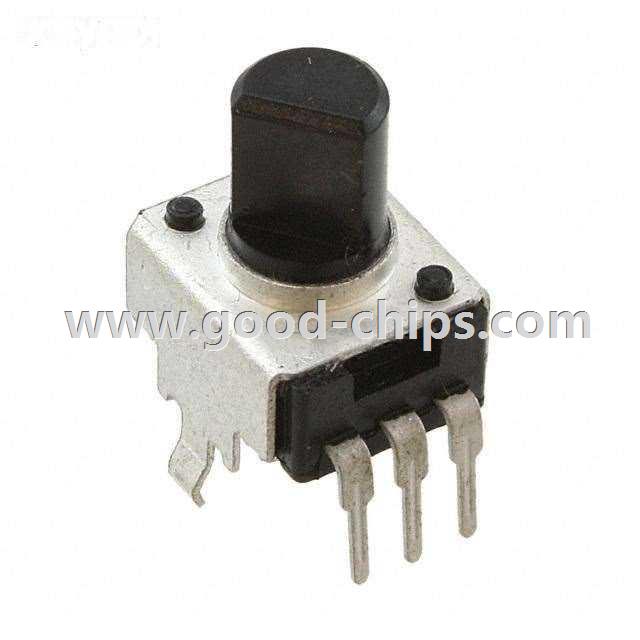

Manufacturer Part Number: | PTV09A-4015F-B103 |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Rotary Potentiometers, Rheostats |
Available Quantity: | 9597 Pieces |
Unit Price: | Quote by Email |
Description: | 10k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer None 1 Turn Carbon 0.05W, 1/20W PC Pins, Board Locks |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PTV09A-4015F-B103 Datasheet |
Internal Part Number | 898-PTV09A-4015F-B103 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | PTV09 Material Declaration | |
3D Model | PTV09A-4x15F.stp | |
Online Catalog | Pro Audio PTV09 Series | |
Category | Potentiometers, Variable Resistors | |
Family | Rotary Potentiometers, Rheostats | |
Manufacturer | Bourns Inc. | |
Series | Pro Audio PTV09 | |
Packaging | Tray | |
Part Status | Active | |
Taper | Linear | |
Resistance (Ohms) | 10k | |
Tolerance | ±20% | |
Number of Gangs | 1 | |
Built in Switch | None | |
Power (Watts) | 0.05W, 1/20W | |
Temperature Coefficient | - | |
Number of Turns | 1 | |
Rotation | 280° | |
Adjustment Type | Top Adjustment | |
Resistive Material | Carbon | |
Termination Style | PC Pins, Board Locks | |
Actuator Type | Flatted | |
Actuator Length | 0.591" (15.00mm) | |
Actuator Diameter | 0.236" (6.00mm) | |
Bushing Thread | - | |
Mounting Type | Through Hole, Snap In | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PTV09A-4015F-B103 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PTV09A-4015F-B103 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PTV09A-4015F-B103 is new and unused, you can buy PTV09A-4015F-B103 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTV09A-4015F-B103.
