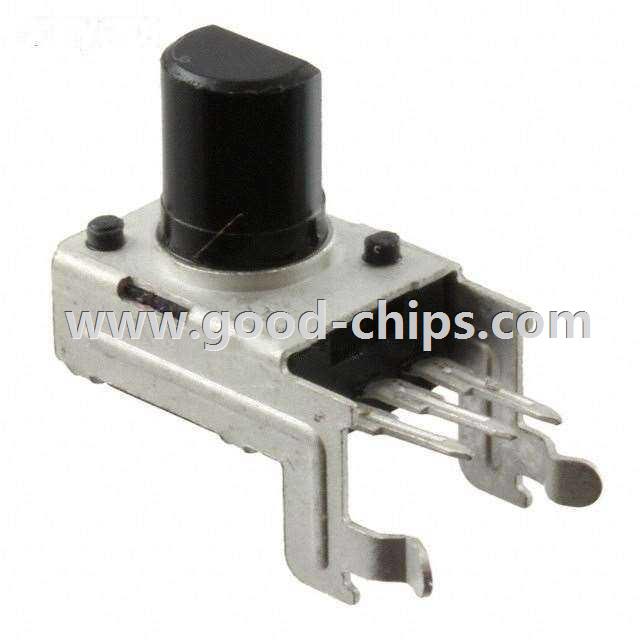

| Manufacturer Part Number: | PTV09A-2015F-B103 |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Rotary Potentiometers, Rheostats |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer None 1 Turn Carbon 0.05W, 1/20W PC Pins, Board Locks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTV09A-2015F-B103 Datasheet |
| Internal Part Number | 898-PTV09A-2015F-B103 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | PTV09 Material Declaration | |
| 3D Model | PTV09A-2x15F.stp | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Pro Audio PTV09 Series | |
| Category | Potentiometers, Variable Resistors | |
| Family | Rotary Potentiometers, Rheostats | |
| Manufacturer | Bourns Inc. | |
| Series | Pro Audio PTV09 | |
| Packaging | Tray | |
| Part Status | Active | |
| Taper | Linear | |
| Resistance (Ohms) | 10k | |
| Tolerance | ±20% | |
| Number of Gangs | 1 | |
| Built in Switch | None | |
| Power (Watts) | 0.05W, 1/20W | |
| Temperature Coefficient | - | |
| Number of Turns | 1 | |
| Rotation | 280° | |
| Adjustment Type | Side Adjustment | |
| Resistive Material | Carbon | |
| Termination Style | PC Pins, Board Locks | |
| Actuator Type | Flatted | |
| Actuator Length | 0.591" (15.00mm) | |
| Actuator Diameter | 0.236" (6.00mm) | |
| Bushing Thread | - | |
| Mounting Type | Through Hole, Snap In | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTV09A-2015F-B103 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTV09A-2015F-B103 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PTV09A-2015F-B103 is new and unused, you can buy PTV09A-2015F-B103 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTV09A-2015F-B103.
