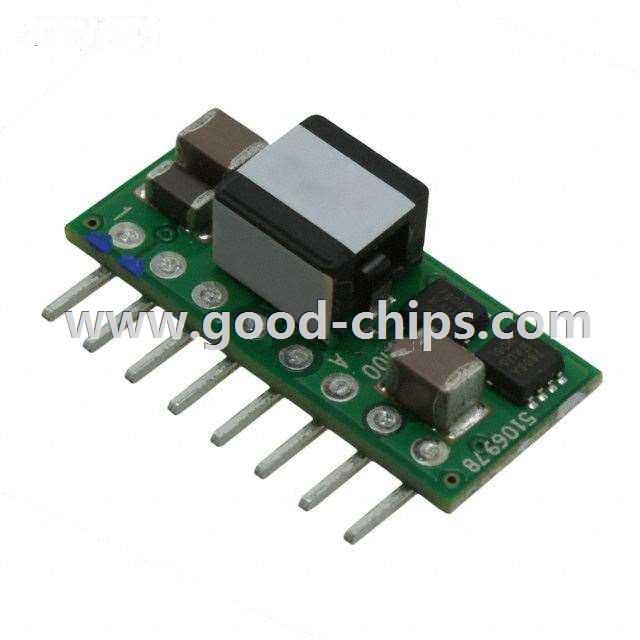

Manufacturer Part Number: | PTV05010WAD |
---|---|
Manufacturer: | Artesyn Embedded Technologies |
Product Category: | DC DC Converters |
Available Quantity: | 9022 Pieces |
Unit Price: | Quote by Email |
Description: | CONV DC/DC5VIN ADJOUT 8A |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PTV05010WAD Datasheet |
Internal Part Number | 898-PTV05010WAD | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | PTV05010 Series Converters | |
PCN Packaging | CSA Marking 20/Sep/2013 | |
Online Catalog | PTV05010 Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Artesyn Embedded Technologies | |
Series | PTV05010 | |
Packaging | Tray | |
Part Status | Active | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 4.5V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output 1 | 0.8 ~ 3.6 V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 8A | |
Power (Watts) - Manufacture Series | 28.8W | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 8-SIP Module | |
Size / Dimension | 0.90" L x 0.33" W x 0.40" H (22.9mm x 8.4mm x 10.2mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 95% | |
Power (Watts) - Max | 28.8W | |
Standard Package | 84 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PTV05010WAD | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PTV05010WAD is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of PTV05010WAD is new and unused, you can buy PTV05010WAD Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTV05010WAD.
