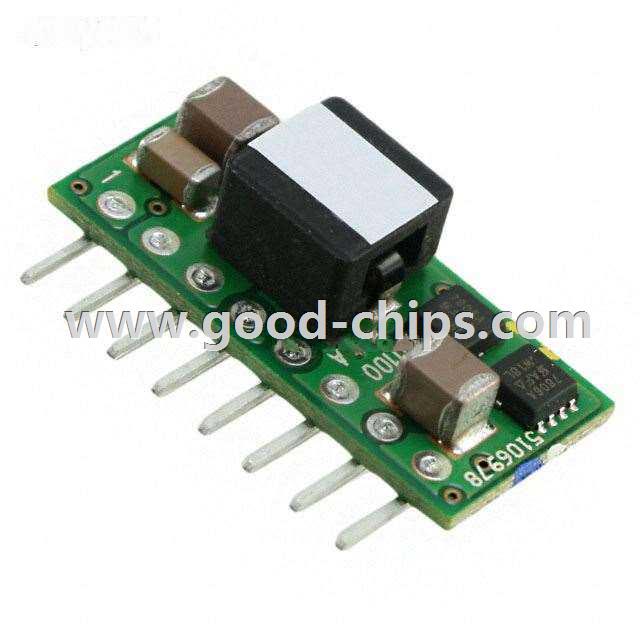

| Manufacturer Part Number: | PTV03010WAH |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | DC DC Converters |
| Available Quantity: | 9146 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE PIP 3.3VIN 8A VERT 8-SIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTV03010WAH Datasheet |
| Internal Part Number | 898-PTV03010WAH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | PTV03010WAH Specifications | |
| Online Catalog | PTV03010W Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Texas Instruments | |
| Series | PTV03010W | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2.95V | |
| Voltage - Input (Max) | 3.65V | |
| Voltage - Output 1 | 0.8 ~ 2.5 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 8A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 8-SIP Module | |
| Size / Dimension | 0.90" L x 0.33" W x 0.40" H (22.9mm x 8.4mm x 10.2mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 93% | |
| Power (Watts) - Max | 20W | |
| Standard Package | 70 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTV03010WAH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTV03010WAH is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of PTV03010WAH is new and unused, you can buy PTV03010WAH Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTV03010WAH.
