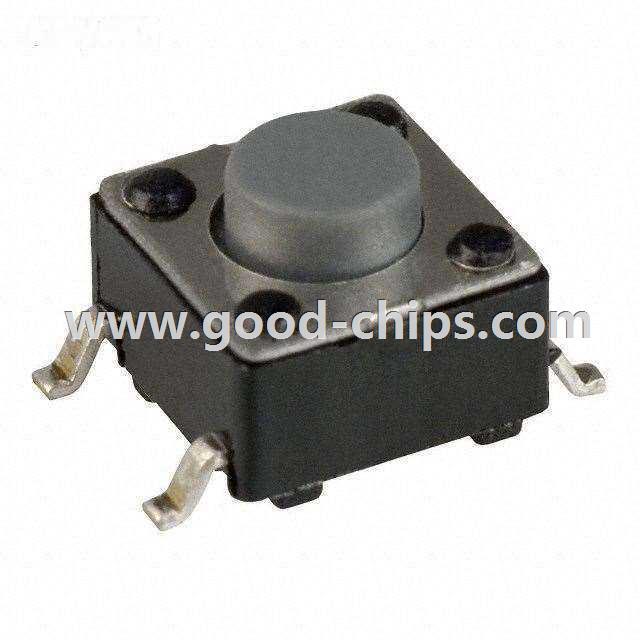

Manufacturer Part Number: | PTS645SH50SM |
---|---|
Manufacturer: | C&K Components |
Product Category: | Tactile Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Tactile Switch SPST-NO Top Actuated Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PTS645SH50SM Datasheet |
Internal Part Number | 898-PTS645SH50SM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Switches | |
Family | Tactile Switches | |
Manufacturer | C&K Components | |
Series | PTS645 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Contact Rating @ Voltage | 0.05A @ 12VDC | |
Actuator Type | Standard | |
Mounting Type | Surface Mount | |
Actuator Height off PCB, from Pins | 5.00mm | |
Actuator Orientation | Top Actuated | |
Termination Style | Gull Wing | |
Outline | 6.00mm x 6.00mm | |
Illumination | Non-Illuminated | |
Illumination Voltage (Nominal) | - | |
Illumination Type, Color | - | |
Operating Force | 200gf | |
Ingress Protection | - | |
Features | - | |
Actuator Material | Polyamide (PA66), Nylon 6/6 | |
Switch Travel | - | |
Mechanical Life | 100,000 Cycles | |
Operating Temperature | -10°C ~ 60°C | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PTS645SH50SM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PTS645SH50SM is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of PTS645SH50SM is new and unused, you can buy PTS645SH50SM C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTS645SH50SM.
