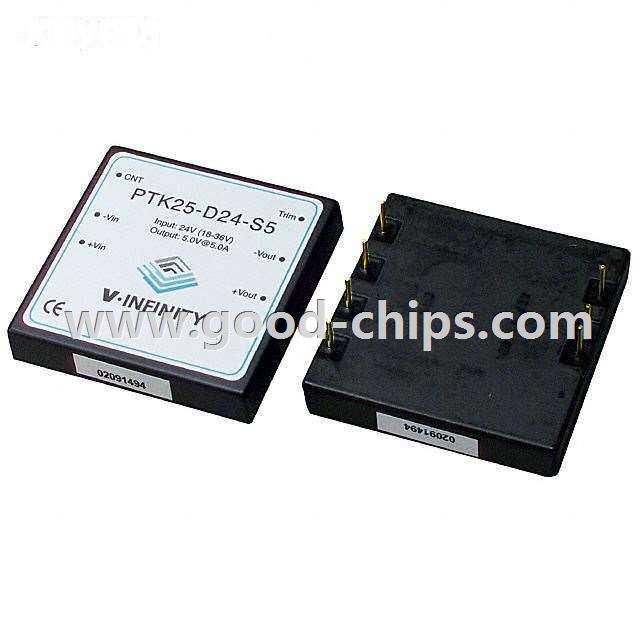

Manufacturer Part Number: | PTK25-D24-S5 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 5V OUT 25W |
Lead Free Status / RoHS Status: | Vendor undefined / Vendor undefined |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PTK25-D24-S5 Datasheet |
Internal Part Number | 898-PTK25-D24-S5 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | PTK25-D24-S5 Cert of Compliance | |
PCN Obsolescence/ EOL | PK, PTK, FSK, FSC 28/Sept/2012 | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | PTK25 | |
Packaging | - | |
Part Status | Obsolete | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 18V | |
Voltage - Input (Max) | 36V | |
Voltage - Output 1 | 5V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 5A | |
Power (Watts) - Manufacture Series | 25W | |
Voltage - Isolation | 500V | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OVP | |
Mounting Type | Through Hole | |
Package / Case | 8-DIP Module (7 Leads) | |
Size / Dimension | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | |
Operating Temperature | -20°C ~ 71°C | |
Efficiency | - | |
Power (Watts) - Max | 25W | |
Standard Package | 12 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PTK25-D24-S5 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PTK25-D24-S5 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PTK25-D24-S5 is new and unused, you can buy PTK25-D24-S5 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTK25-D24-S5.
