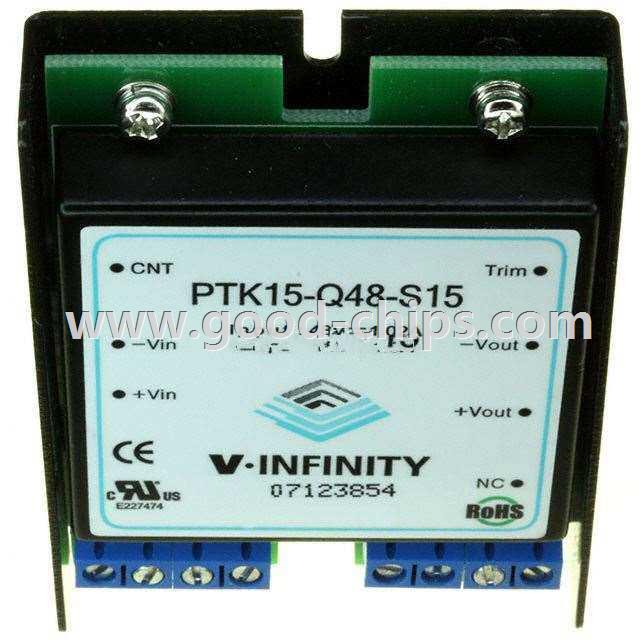

Manufacturer Part Number: | PTK15-Q48-S15-T |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 15V 15W TERMINAL |
Lead Free Status / RoHS Status: | Vendor undefined / Vendor undefined |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PTK15-Q48-S15-T Datasheet |
Internal Part Number | 898-PTK15-Q48-S15-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | PTK15-Q48-S15 Cert of Compliance | |
PCN Obsolescence/ EOL | PK, PTK, FSK, FSC 28/Sept/2012 | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | PTK15 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Type | Isolated | |
Voltage - Input | 20 ~ 72V | |
Output | 15V | |
Number of Outputs | 1 | |
Output - 1 @ Current (Max) | 15 VDC @ 1A | |
Output - 2 @ Current (Max) | - | |
Output - 3 @ Current (Max) | - | |
Output - 4 @ Current (Max) | - | |
Power (Watts) | 15W | |
Applications | ITE (Commercial) | |
Mounting Type | Chassis Mount | |
Operating Temperature | -20°C ~ 71°C | |
Efficiency | 87% | |
Package / Case | Module | |
Size / Dimension | 3.00" L x 2.25" W x 0.67" H (76.2mm x 57.2mm x 17.0mm) | |
Power (Watts) - Max | 15W | |
Approvals | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PTK15-Q48-S15-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PTK15-Q48-S15-T is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PTK15-Q48-S15-T is new and unused, you can buy PTK15-Q48-S15-T CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTK15-Q48-S15-T.
