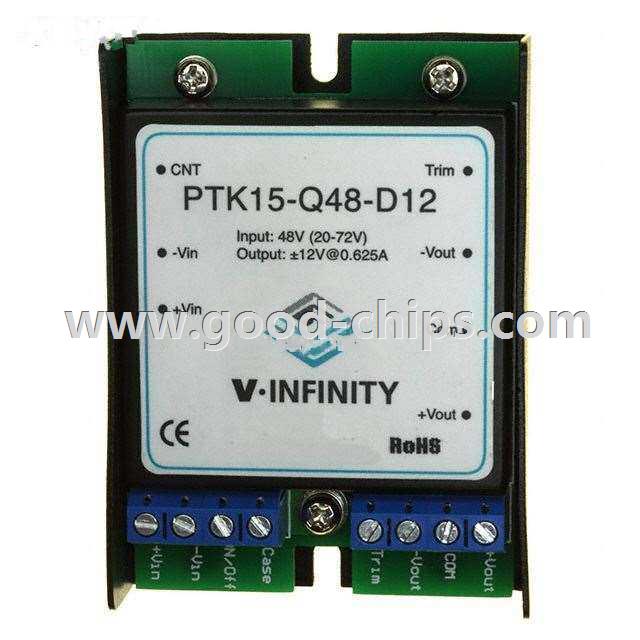

| Manufacturer Part Number: | PTK15-Q48-D12-T |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC +/-12V 15W TERM |
| Lead Free Status / RoHS Status: | Vendor undefined / Vendor undefined |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTK15-Q48-D12-T Datasheet |
| Internal Part Number | 898-PTK15-Q48-D12-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | PTK15-Q48-D12 Cert of Compliance | |
| PCN Obsolescence/ EOL | PK, PTK, FSK, FSC 28/Sept/2012 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | PTK15 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | Isolated | |
| Voltage - Input | 20 ~ 72V | |
| Output | ±12V | |
| Number of Outputs | 2 | |
| Output - 1 @ Current (Max) | 12 VDC @ 625mA | |
| Output - 2 @ Current (Max) | -12 VDC @ 625mA | |
| Output - 3 @ Current (Max) | - | |
| Output - 4 @ Current (Max) | - | |
| Power (Watts) | 15W | |
| Applications | ITE (Commercial) | |
| Mounting Type | Chassis Mount | |
| Operating Temperature | -20°C ~ 71°C | |
| Efficiency | 86% | |
| Package / Case | Module | |
| Size / Dimension | 3.00" L x 2.25" W x 0.67" H (76.2mm x 57.2mm x 17.0mm) | |
| Power (Watts) - Max | 15W | |
| Approvals | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTK15-Q48-D12-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTK15-Q48-D12-T is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PTK15-Q48-D12-T is new and unused, you can buy PTK15-Q48-D12-T CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTK15-Q48-D12-T.
