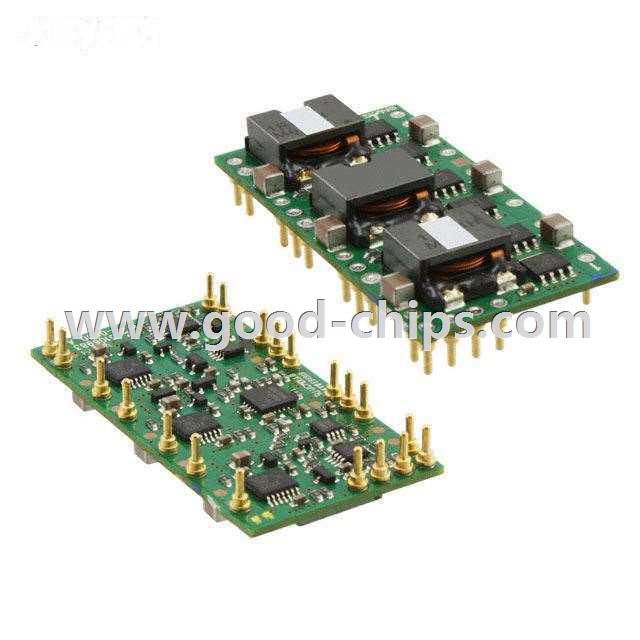

| Manufacturer Part Number: | PTH12040WAH |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | DC DC Converters |
| Available Quantity: | 9181 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE PIP .8-5.5V 50A HORZ T/H |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTH12040WAH Datasheet |
| Internal Part Number | 898-PTH12040WAH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | PTH12040WAH Specifications | |
| Online Catalog | PTH12040W | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Texas Instruments | |
| Series | PTH12040 | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 8V | |
| Voltage - Input (Max) | 14V | |
| Voltage - Output 1 | 0.8 ~ 5.5 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 50A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | - | |
| Mounting Type | Through Hole | |
| Package / Case | 20-DIP Module | |
| Size / Dimension | 2.05" L x 1.05" W x 0.36" H (52.1mm x 26.7mm x 9.1mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 96% | |
| Power (Watts) - Max | 275W | |
| Standard Package | 12 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTH12040WAH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTH12040WAH is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of PTH12040WAH is new and unused, you can buy PTH12040WAH Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTH12040WAH.
