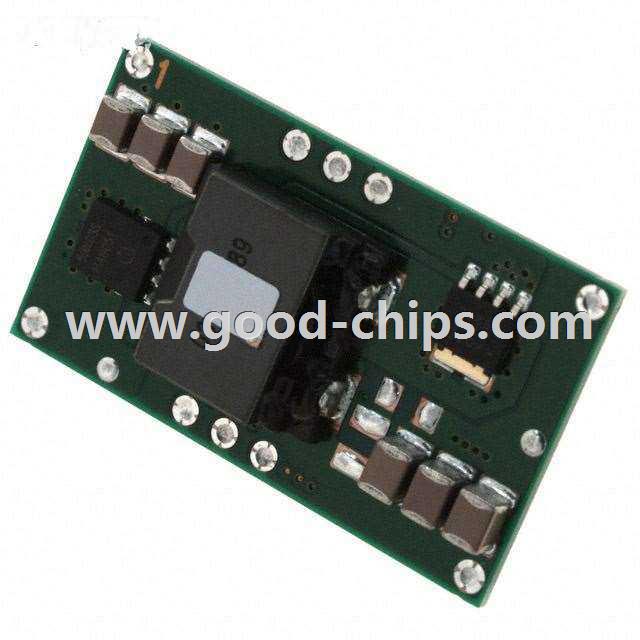

| Manufacturer Part Number: | PTH12020WAS |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 1.2-5.5V 99W |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTH12020WAS Datasheet |
| Internal Part Number | 898-PTH12020WAS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | PTH12020WAS Specifications | |
| Online Catalog | PTH12020 Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Texas Instruments | |
| Series | PTH12020 | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 10.8V | |
| Voltage - Input (Max) | 13.2V | |
| Voltage - Output 1 | 1.2 ~ 5.5 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 18A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-SMD Module | |
| Size / Dimension | 1.49" L x 0.87" W x 0.38" H (38.0mm x 22.1mm x 9.6mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 95% | |
| Power (Watts) - Max | 99W | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTH12020WAS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTH12020WAS is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of PTH12020WAS is new and unused, you can buy PTH12020WAS Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTH12020WAS.
