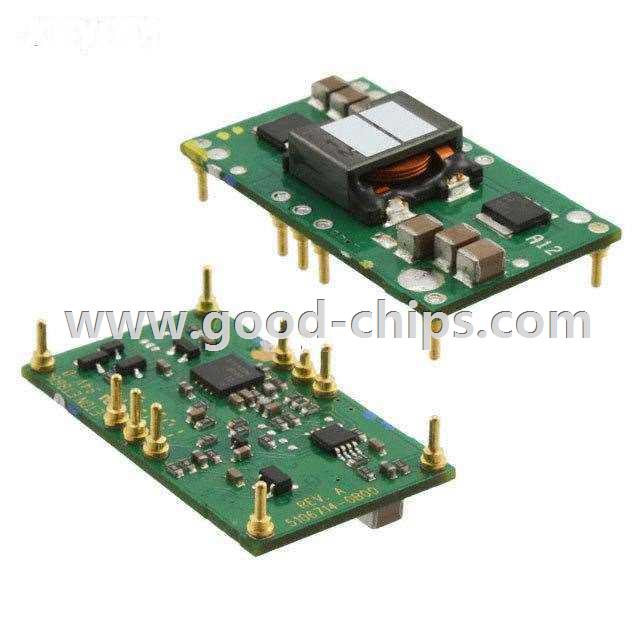

| Manufacturer Part Number: | PTH12020LAH |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | DC DC Converters |
| Available Quantity: | 9086 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE PIP .8-1.8V 18A T/H 10DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTH12020LAH Datasheet |
| Internal Part Number | 898-PTH12020LAH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | PTH12020LAH Specifications | |
| Online Catalog | PTH12020 Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Texas Instruments | |
| Series | PTH12020 | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 10.8V | |
| Voltage - Input (Max) | 13.2V | |
| Voltage - Output 1 | 0.8 ~ 1.8 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 18A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | - | |
| Mounting Type | Through Hole | |
| Package / Case | 10-DIP Module | |
| Size / Dimension | 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 89% | |
| Power (Watts) - Max | 32.4W | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTH12020LAH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTH12020LAH is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of PTH12020LAH is new and unused, you can buy PTH12020LAH Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTH12020LAH.
