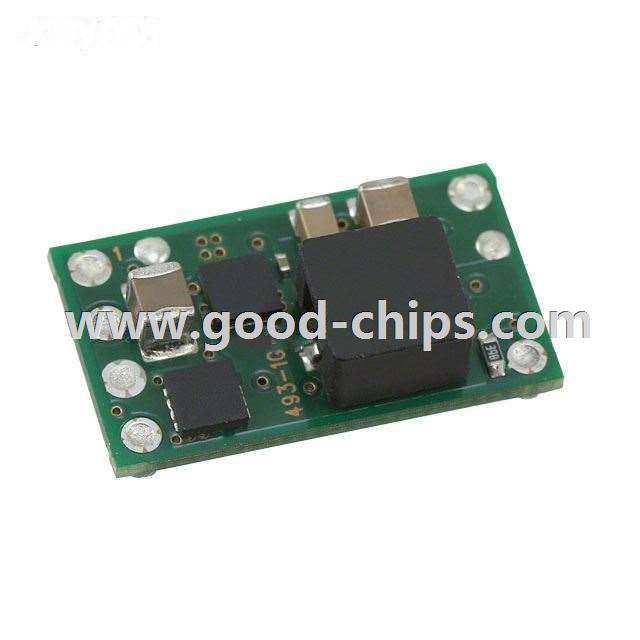

| Manufacturer Part Number: | PTH03050WAZ |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | DC DC Converters |
| Available Quantity: | 9091 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC/DC 3.3VIN ADJOUT 6A SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTH03050WAZ Datasheet |
| Internal Part Number | 898-PTH03050WAZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Online Catalog | PTH03050 Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | PTH03050W | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2.95V | |
| Voltage - Input (Max) | 3.65V | |
| Voltage - Output 1 | 0.8 ~ 2.5 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 6A | |
| Power (Watts) - Manufacture Series | 15W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD Module | |
| Size / Dimension | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 94% | |
| Power (Watts) - Max | 15W | |
| Standard Package | 56 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTH03050WAZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTH03050WAZ is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of PTH03050WAZ is new and unused, you can buy PTH03050WAZ Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTH03050WAZ.
