| Manufacturer Part Number: | PTFA082201EV4XWSA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - RF |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Mosfet LDMOS 30V 1.95A 894MHz 18dB 220W H-36260-2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTFA082201EV4XWSA1 Datasheet |
| Internal Part Number | 898-PTFA082201EV4XWSA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 08/Jan/2015 | |
| PCN Design/Specification | Laser Marking Update 07/May/2015 | |
| PCN Assembly/Origin | New Wafer Carrier 28/Oct/2014 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - RF | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Transistor Type | LDMOS | |
| Frequency | 894MHz | |
| Gain | 18dB | |
| Voltage - Test | 30V | |
| Current Rating | 10µA | |
| Noise Figure | - | |
| Current - Test | 1.95A | |
| Power - Output | 220W | |
| Voltage - Rated | 65V | |

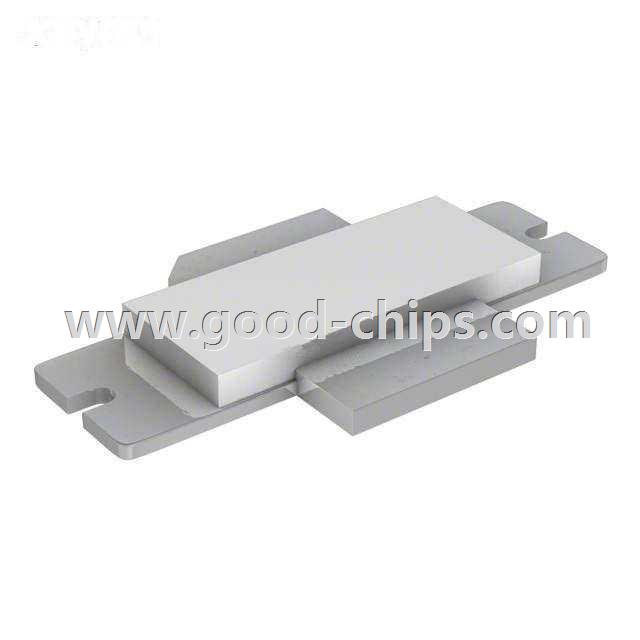

| Package / Case | 2-Flatpack, Fin Leads | |
| Supplier Device Package | H-36260-2 | |
| Standard Package | 35 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTFA082201EV4XWSA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTFA082201EV4XWSA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of PTFA082201EV4XWSA1 is new and unused, you can buy PTFA082201EV4XWSA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTFA082201EV4XWSA1.
