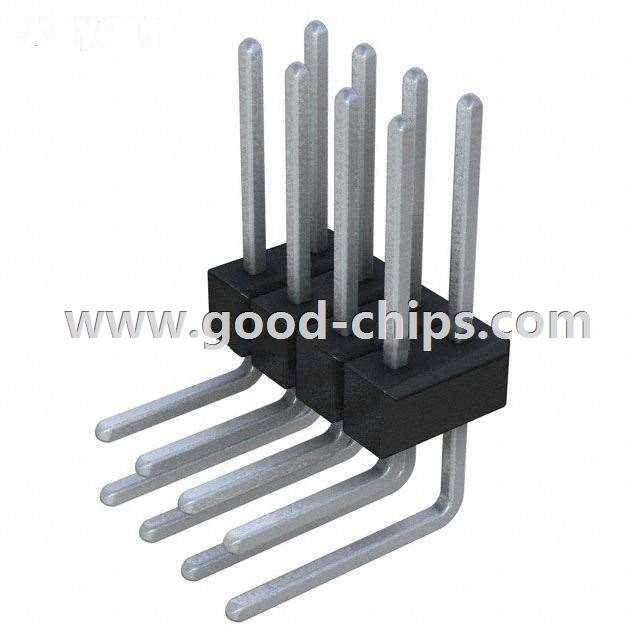

PTC04DGBN

PTC04DGBN
Manufacturer Part Number:PTC04DGBN
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:8 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PTC04DGBN Datasheet
PTC04DGBN´s Parameters
Internal Part Number898-PTC04DGBN
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerSullins Connector Solutions
Series-
PackagingBulk
Part StatusObsolete
Contact TypeMale Pin
Connector TypeHeader, Unshrouded
Number of Positions8
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows2
Row Spacing0.100" (2.54mm)
Contact Mating Length0.318" (8.08mm)
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening Type-
Features-
Contact FinishTin
Contact Finish Thickness100µin (2.54µm)
ColorBlack
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartPTC04DGBN
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PTC04DGBN is in stock for immediate shipping now. We are the distributor of Sullins Connector Solutions all series components. The condition of PTC04DGBN is new and unused, you can buy PTC04DGBN Sullins Connector Solutions with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PTC04DGBN.
