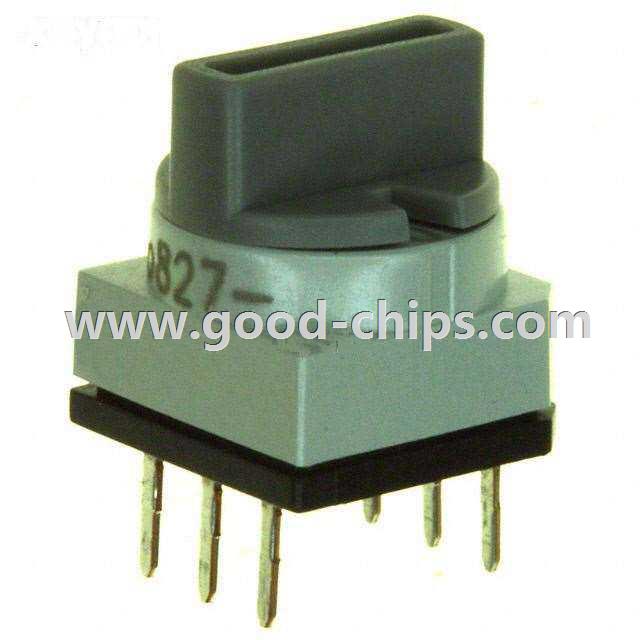

| Manufacturer Part Number: | PT65503 |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | DIP Switches |
| Available Quantity: | 12173 Pieces |
| Unit Price: | Quote by Email |
| Description: | Dip Switch Hexadecimal 16 Position Through Hole Rotary with Knob Actuator 150mA 24VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PT65503 Datasheet |
| Internal Part Number | 898-PT65503 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | PT65 Series | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | Apem Inc. | |
| Series | PT65 | |
| Packaging | Tray | |
| Part Status | Active | |
| Circuit | Hexadecimal | |
| Number of Positions | 16 | |
| Current Rating | 150mA | |
| Voltage Rating | 24VDC | |
| Actuator Type | Rotary with Knob | |
| Actuator Level | Raised | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Height Above Board | 0.469" (11.90mm) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | Sealed - Flux Protection | |
| Body Material | Thermoplastic | |
| Length | 0.393" (10.00mm) | |
| Operating Temperature | -20°C ~ 70°C | |
| Mechanical Life | 10,000 Cycles | |
| Electrical Life | - | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PT65503 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PT65503 is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of PT65503 is new and unused, you can buy PT65503 Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PT65503.
