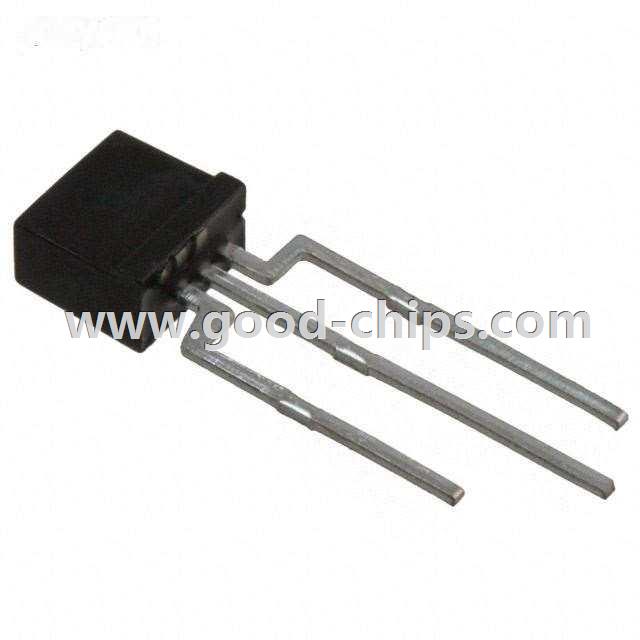

| Manufacturer Part Number: | PT2559B/L2-F |
|---|---|
| Manufacturer: | Everlight Electronics Co Ltd |
| Product Category: | Optical Sensors - Phototransistors |
| Available Quantity: | 9552 Pieces |
| Unit Price: | Quote by Email |
| Description: | PHOTOTRANSISTOR SIDE FACE BK RAD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PT2559B/L2-F Datasheet |
| Internal Part Number | 898-PT2559B/L2-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | PT2559B | |
| Category | Sensors, Transducers | |
| Family | Optical Sensors - Phototransistors | |
| Manufacturer | Everlight Electronics Co Ltd | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Voltage - Collector Emitter Breakdown (Max) | 30V | |
| Current - Collector (Ic) (Max) | 20mA | |
| Current - Dark (Id) (Max) | 100nA | |
| Wavelength | 940nm | |
| Viewing Angle | - | |
| Power - Max | - | |
| Mounting Type | Through Hole | |
| Orientation | Side View | |
| Operating Temperature | -25°C ~ 85°C (TA) | |
| Package / Case | Radial, 3 Lead, Side View | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PT2559B/L2-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PT2559B/L2-F is in stock for immediate shipping now. We are the distributor of Everlight Electronics Co Ltd all series components. The condition of PT2559B/L2-F is new and unused, you can buy PT2559B/L2-F Everlight Electronics Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PT2559B/L2-F.
