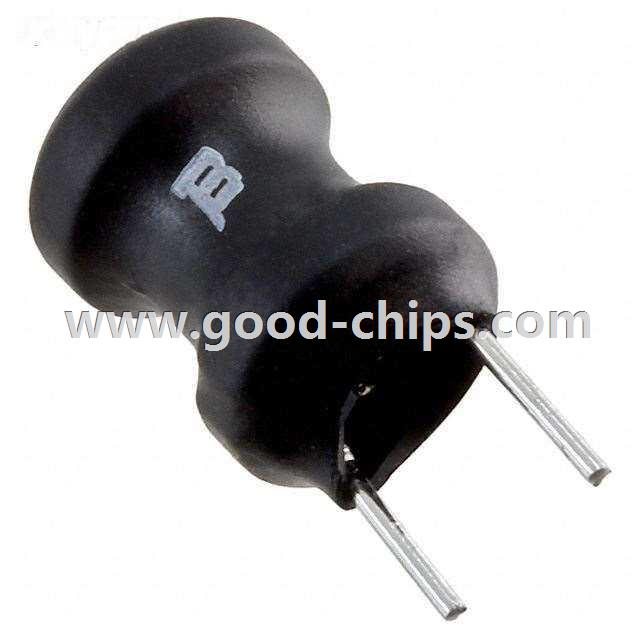

| Manufacturer Part Number: | PT12110SL |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 100µH Unshielded Wirewound Inductor 200mA 2 Ohm Max Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PT12110SL Datasheet |
| Internal Part Number | 898-PT12110SL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | PT121 Series Jun/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | PT121 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | Wirewound | |
| Material - Core | - | |
| Inductance | 100µH | |
| Tolerance | ±10% | |
| Current Rating | 200mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 2 Ohm Max | |
| Q @ Freq | 80 @ 796kHz | |
| Frequency - Self Resonant | 5.3MHz | |
| Ratings | - | |
| Operating Temperature | -20°C ~ 80°C | |
| Frequency - Test | 796kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 0.400" Dia (10.15mm) | |
| Height - Seated (Max) | 0.500" (12.70mm) | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PT12110SL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PT12110SL is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PT12110SL is new and unused, you can buy PT12110SL Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PT12110SL.
