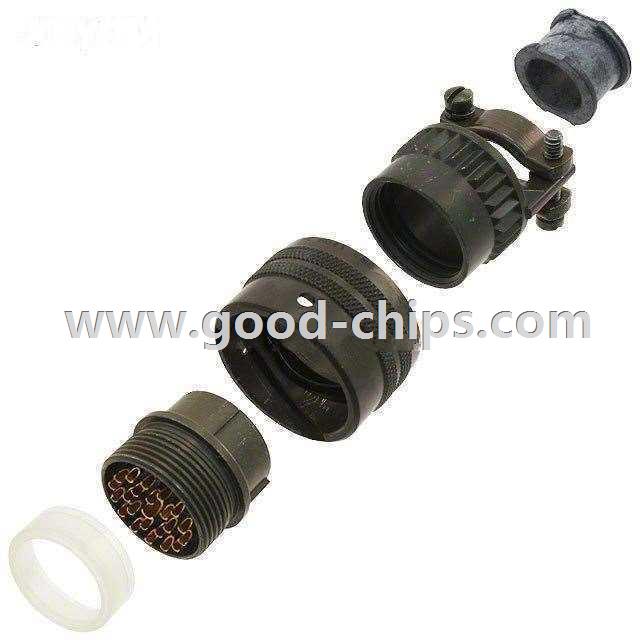

Manufacturer Part Number: | PT06E-16-23S(SR) |
---|---|
Manufacturer: | Amphenol Industrial Operations |
Product Category: | Circular Connectors |
Available Quantity: | 9038 Pieces |
Unit Price: | Quote by Email |
Description: | 23 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PT06E-16-23S(SR) Datasheet |
Internal Part Number | 898-PT06E-16-23S(SR) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | MIL-DTL-26482 Series I, PT | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | Amphenol Industrial Operations | |
Series | MIL-DTL-26482 Series I, PT | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug, Female Sockets | |
Number of Positions | 23 | |
Shell Size - Insert | 16-23 | |
Shell Size, MIL | - | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Solder Cup | |
Fastening Type | Bayonet Lock | |
Orientation | N (Normal) | |
Ingress Protection | Environment Resistant | |
Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | |
Contact Finish | Gold | |
Features | Strain Relief | |
Contact Finish Thickness | - | |
Current Rating | 7.5A, 13A | |
Voltage - Rated | 600VAC | |
Operating Temperature | -55°C ~ 125°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PT06E-16-23S(SR) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PT06E-16-23S(SR) is in stock for immediate shipping now. We are the distributor of Amphenol Industrial Operations all series components. The condition of PT06E-16-23S(SR) is new and unused, you can buy PT06E-16-23S(SR) Amphenol Industrial Operations with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PT06E-16-23S(SR).
