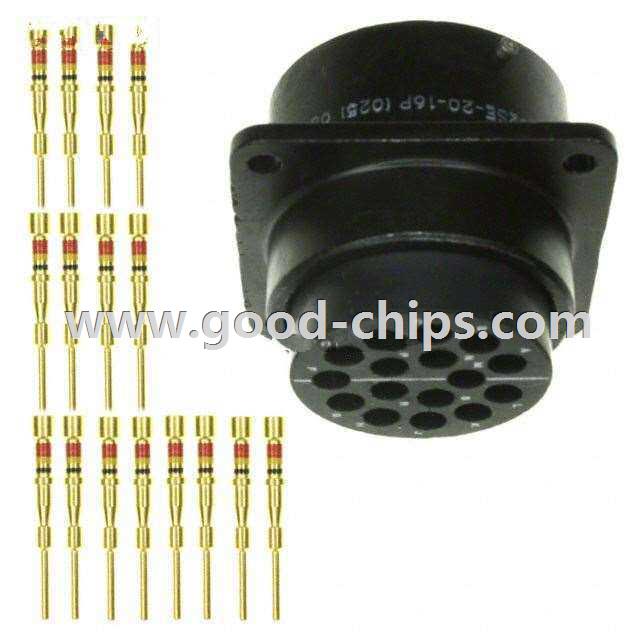

PT02SE-20-16P(025)

PT02SE-20-16P(025)
Manufacturer Part Number:PT02SE-20-16P(025)
Manufacturer:
Product Category:Circular Connectors
Available Quantity:9052 Pieces
Unit Price:Quote by Email
Description:16 Position Circular Connector Receptacle, Male Pins Crimp Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PT02SE-20-16P(025) Datasheet
PT02SE-20-16P(025)´s Parameters
Internal Part Number898-PT02SE-20-16P(025)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training Modules26482 Series 1 Miniature Cylindrical Connector
Online Catalog MIL-DTL-26482 Series I, PT
CategoryConnectors, Interconnects
FamilyCircular Connectors
ManufacturerAmphenol Industrial Operations
SeriesMIL-DTL-26482 Series I, PT
PackagingBulk
Part StatusActive
Connector TypeReceptacle, Male Pins
Number of Positions16
Shell Size - Insert20-16
Shell Size, MIL-
Mounting TypePanel Mount, Flange
TerminationCrimp
Fastening TypeBayonet Lock
OrientationN (Normal)
Ingress ProtectionEnvironment Resistant
Shell Material, FinishAluminum, Black Zinc Cobalt Plated
Contact FinishGold
Features-
Contact Finish Thickness-
Current Rating13A
Voltage - Rated1000VAC
Operating Temperature-55°C ~ 125°C
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartPT02SE-20-16P(025)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PT02SE-20-16P(025) is in stock for immediate shipping now. We are the distributor of Amphenol Industrial Operations all series components. The condition of PT02SE-20-16P(025) is new and unused, you can buy PT02SE-20-16P(025) Amphenol Industrial Operations with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PT02SE-20-16P(025).
