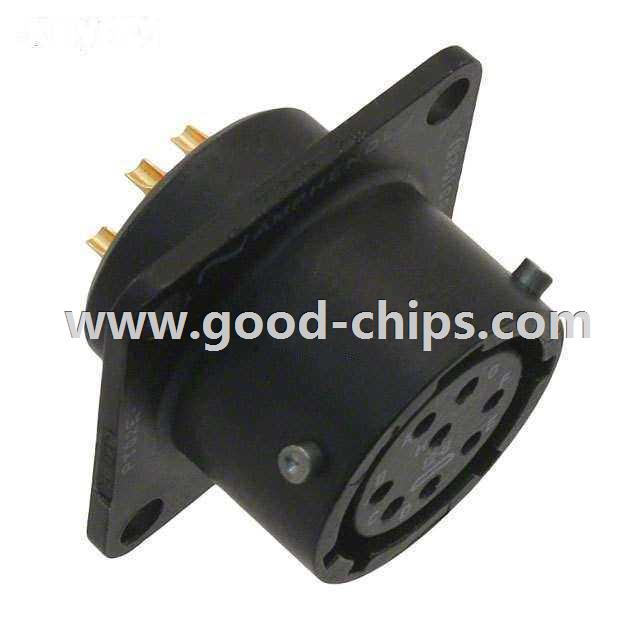

PT02E-12-8S(025)

PT02E-12-8S(025)
Manufacturer Part Number:PT02E-12-8S(025)
Manufacturer:
Product Category:Circular Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:8 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold
Lead Free Status / RoHS Status:Lead free / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PT02E-12-8S(025) Datasheet
PT02E-12-8S(025)´s Parameters
Internal Part Number898-PT02E-12-8S(025)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training Modules26482 Series 1 Miniature Cylindrical Connector
Online Catalog MIL-DTL-26482 Series I, PT
CategoryConnectors, Interconnects
FamilyCircular Connectors
ManufacturerAmphenol Industrial Operations
SeriesMIL-DTL-26482 Series I, PT
PackagingBulk
Part StatusActive
Connector TypeReceptacle, Female Sockets
Number of Positions8
Shell Size - Insert12-8
Shell Size, MIL-
Mounting TypePanel Mount, Flange
TerminationSolder Cup
Fastening TypeBayonet Lock
OrientationN (Normal)
Ingress ProtectionEnvironment Resistant
Shell Material, FinishAluminum, Black Zinc Cobalt Plated
Contact FinishGold
Features-
Contact Finish Thickness-
Current Rating7.5A
Voltage - Rated600VAC
Operating Temperature-55°C ~ 125°C
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartPT02E-12-8S(025)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PT02E-12-8S(025) is in stock for immediate shipping now. We are the distributor of Amphenol Industrial Operations all series components. The condition of PT02E-12-8S(025) is new and unused, you can buy PT02E-12-8S(025) Amphenol Industrial Operations with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PT02E-12-8S(025).
