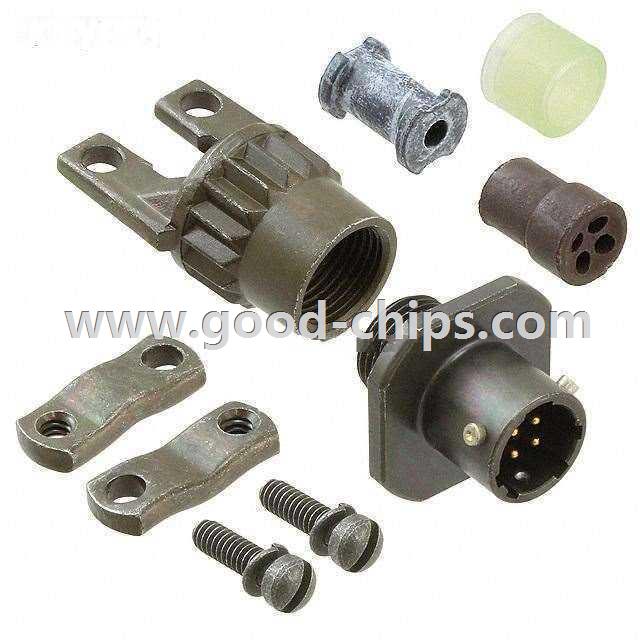

| Manufacturer Part Number: | PT01E-8-4P(SR) |
|---|---|
| Manufacturer: | Amphenol Industrial Operations |
| Product Category: | Circular Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Position Circular Connector Receptacle, Male Pins Solder Cup Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PT01E-8-4P(SR) Datasheet |
| Internal Part Number | 898-PT01E-8-4P(SR) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MIL-DTL-26482 Series I, PT | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | Amphenol Industrial Operations | |
| Series | MIL-DTL-26482 Series I, PT | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Male Pins | |
| Number of Positions | 4 | |
| Shell Size - Insert | 8-4 | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder Cup | |
| Fastening Type | Bayonet Lock | |
| Orientation | N (Normal) | |
| Ingress Protection | Environment Resistant | |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | |
| Contact Finish | Gold | |
| Features | Strain Relief | |
| Contact Finish Thickness | - | |
| Current Rating | 7.5A | |
| Voltage - Rated | 600VAC | |
| Operating Temperature | -55°C ~ 125°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PT01E-8-4P(SR) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PT01E-8-4P(SR) is in stock for immediate shipping now. We are the distributor of Amphenol Industrial Operations all series components. The condition of PT01E-8-4P(SR) is new and unused, you can buy PT01E-8-4P(SR) Amphenol Industrial Operations with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PT01E-8-4P(SR).
