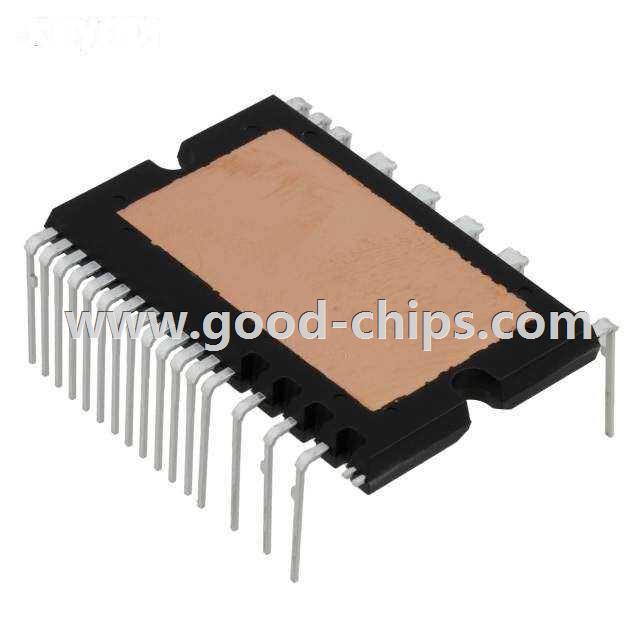

| Manufacturer Part Number: | PSS20S92F6-AG |
|---|---|
| Manufacturer: | Powerex Inc. |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9028 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module IGBT 3 Phase 600V 20A Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PSS20S92F6-AG Datasheet |
| Internal Part Number | 898-PSS20S92F6-AG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Powerex Version 6 DIPIPM™ and 6.1 Generation NX Series IGBTs | |
| Online Catalog | DIPIPM™ Series | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Powerex Inc. | |
| Series | - | |
| Part Status | Active | |
| Type | IGBT | |
| Configuration | 3 Phase | |
| Current | 20A | |
| Voltage | 600V | |
| Voltage - Isolation | 1500Vrms | |
| Package / Case | Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PSS20S92F6-AG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PSS20S92F6-AG is in stock for immediate shipping now. We are the distributor of Powerex Inc. all series components. The condition of PSS20S92F6-AG is new and unused, you can buy PSS20S92F6-AG Powerex Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PSS20S92F6-AG.
