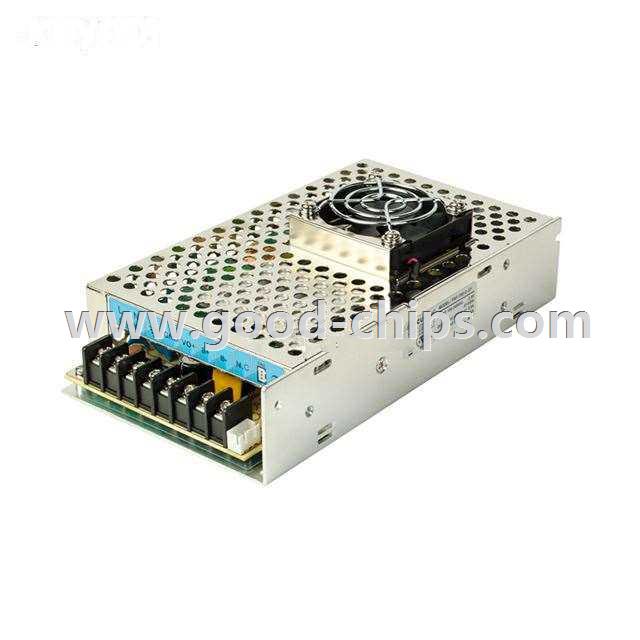

| Manufacturer Part Number: | PSF-155-A-CF |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 2X13.8V 155W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PSF-155-A-CF Datasheet |
| Internal Part Number | 898-PSF-155-A-CF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Supply Safety Standards, Agencies and Marks | |
| RoHS Information | PSF-155-CNF Series Cert of Compliance | |
| Featured Product | CUI - PSF Series AC-DC Power Supplies | |
| 3D Model | PSF-155-A-CF | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | PSF-155 | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 2 | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output 1 | 13.8V | |
| Voltage - Output 2 | 13.8V | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 11.2A, 3.88A | |
| Power (Watts) | 155W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 86% | |
| Operating Temperature | -20°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | |
| Minimum Load Required | No | |
| Approvals | CE, cURus, TUV | |
| Power (Watts) - Max | 155W | |
| Standard Package | 24 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PSF-155-A-CF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PSF-155-A-CF is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PSF-155-A-CF is new and unused, you can buy PSF-155-A-CF CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PSF-155-A-CF.
