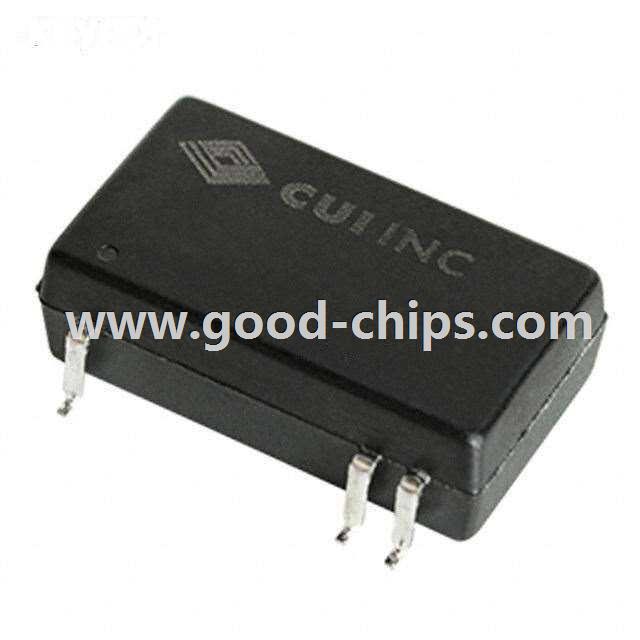

| Manufacturer Part Number: | PQM3-D24-S5-M-TR |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERT DC/DC 3W 5V 600MA OUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PQM3-D24-S5-M-TR Datasheet |
| Internal Part Number | 898-PQM3-D24-S5-M-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Low Power DC-DC Converters EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
| RoHS Information | PQM3-M Series Cert of Compliance | |
| Featured Product | CUI - 3 W Isolated DC-DC Converters | |
| 3D Model | PQM3-D24-S5-M | |
| Online Catalog | PQM3-M Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | PQM3-M | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 18V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 600mA | |
| Power (Watts) - Manufacture Series | 3W | |
| Voltage - Isolation | 1.5kV (1500V) | |
| Applications | ITE (Commercial) | |
| Features | OCP, SCP | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SMD Module (6 Leads) | |
| Size / Dimension | 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm) | |
| Operating Temperature | -40°C ~ 105°C | |
| Efficiency | 77% | |
| Power (Watts) - Max | 3W | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PQM3-D24-S5-M-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PQM3-D24-S5-M-TR is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PQM3-D24-S5-M-TR is new and unused, you can buy PQM3-D24-S5-M-TR CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PQM3-D24-S5-M-TR.
