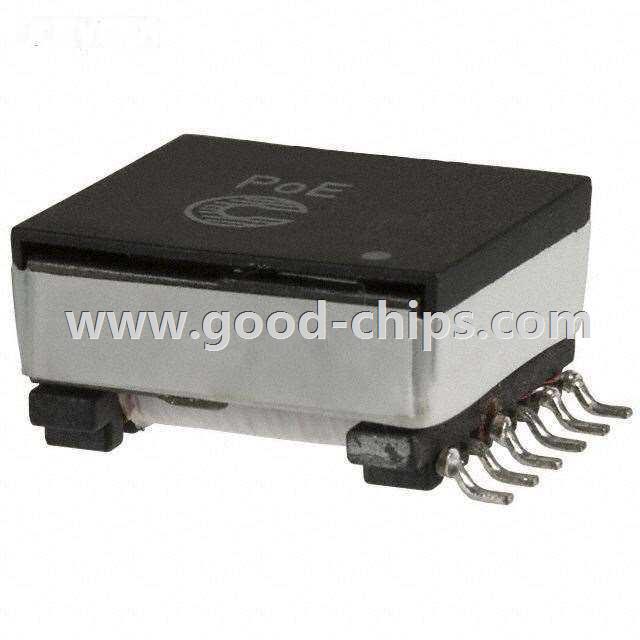

| Manufacturer Part Number: | POE13W2X12-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Switching Converter, SMPS Transformers |
| Available Quantity: | 9150 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANSFRMR 100UH 13W 1.7A 12P SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | POE13W2X12-R Datasheet |
| Internal Part Number | 898-POE13W2X12-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | PoE | |
| Category | Transformers | |
| Family | Switching Converter, SMPS Transformers | |
| Manufacturer | Eaton | |
| Series | PoE | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Configurable (For DC/DC) | |
| Applications | Power Over Ethernet (PoE) | |
| Intended Chipset | - | |
| Voltage - Primary | - | |
| Voltage - Auxillary | - | |
| Voltage - Isolation | 1500Vrms | |
| Frequency | 250kHz | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 18.00mm L x 18.00mm W | |
| Height - Seated (Max) | 10.00mm | |
| Chipset Manufacturer | - | |
| Standard Package | 140 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | POE13W2X12-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
POE13W2X12-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of POE13W2X12-R is new and unused, you can buy POE13W2X12-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for POE13W2X12-R.
