Manufacturer Part Number: | PNZ14700R |
---|---|
Manufacturer: | Panasonic Electronic Components |
Product Category: | Optical Sensors - Phototransistors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

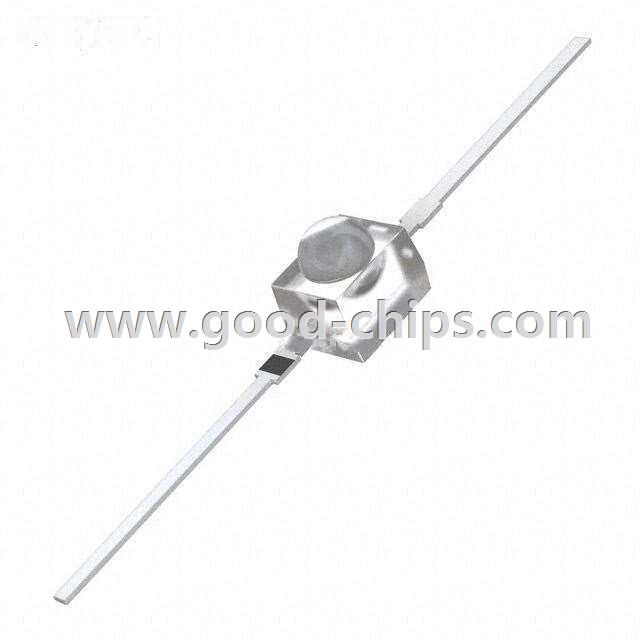

Description: | PHOTO TRANS 800NM 24 DEG AXIAL |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PNZ14700R Datasheet |
Internal Part Number | 898-PNZ14700R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Wearables Technology Components | |
PCN Obsolescence/ EOL | Mulitple Devices 05/May/2009 | |
Category | Sensors, Transducers | |
Family | Optical Sensors - Phototransistors | |
Manufacturer | Panasonic Electronic Components | |
Series | * | |
Packaging | - | |
Part Status | Obsolete | |
Voltage - Collector Emitter Breakdown (Max) | 20V | |
Current - Collector (Ic) (Max) | 20mA | |
Current - Dark (Id) (Max) | 500nA | |
Wavelength | 800nm | |
Viewing Angle | 48° | |
Power - Max | 50mW | |
Mounting Type | Through Hole | |
Orientation | Top View | |
Operating Temperature | - | |
Package / Case | Axial, Flat Leads | |
Standard Package | 200 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PNZ14700R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PNZ14700R is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of PNZ14700R is new and unused, you can buy PNZ14700R Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PNZ14700R.
