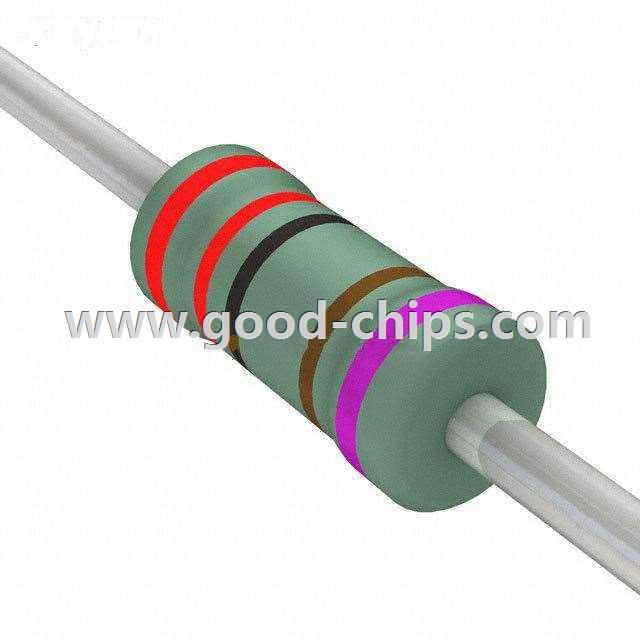

| Manufacturer Part Number: | PNP1WVFTF52-22R |
|---|---|
| Manufacturer: | Yageo |
| Product Category: | Through Hole Resistors |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES 22 OHM 1W 1% AXIAL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PNP1WVFTF52-22R Datasheet |
| Internal Part Number | 898-PNP1WVFTF52-22R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Leaded Resistors | |
| Online Catalog | PNPV Series | |
| Category | Resistors | |
| Family | Through Hole Resistors | |
| Manufacturer | Yageo | |
| Series | PNPV | |
| Packaging | Tape & Box (TB) | |
| Part Status | Active | |
| Resistance (Ohms) | 22 | |
| Tolerance | ±1% | |
| Power (Watts) | 1W | |
| Composition | Wirewound | |
| Features | Flame Retardant Coating, Safety | |
| Temperature Coefficient | ±300ppm/°C | |
| Operating Temperature | -40°C ~ 200°C | |
| Package / Case | Axial | |
| Supplier Device Package | Axial | |
| Size / Dimension | 0.169" Dia x 0.394" L (4.30mm x 10.00mm) | |
| Height | - | |
| Number of Terminations | 2 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PNP1WVFTF52-22R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PNP1WVFTF52-22R is in stock for immediate shipping now. We are the distributor of Yageo all series components. The condition of PNP1WVFTF52-22R is new and unused, you can buy PNP1WVFTF52-22R Yageo with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PNP1WVFTF52-22R.
