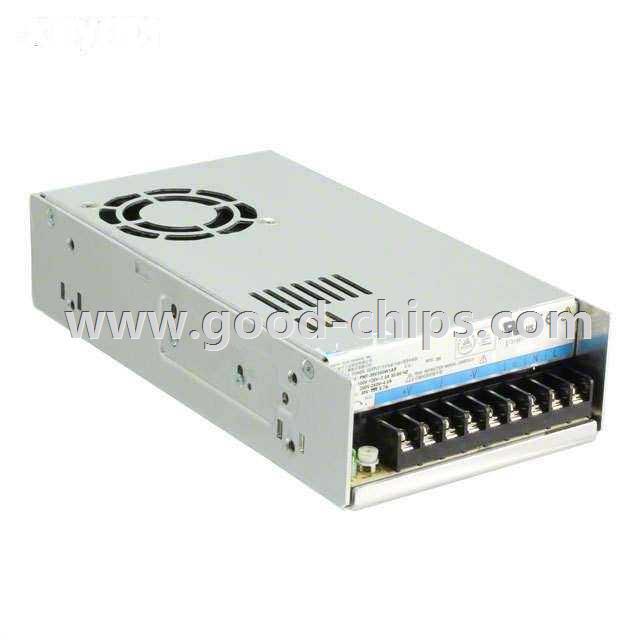

Manufacturer Part Number: | PMT-36V350W1AR |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | AC DC Converters |
Available Quantity: | 9017 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 36V 350W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PMT-36V350W1AR Datasheet |
Internal Part Number | 898-PMT-36V350W1AR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | PMT-xxV350W1Ax CB Test Cert PMT-xxV350W1Ax EC Declaration of Conformity PMT-xxV350W1Ax TUV Cert Standard Power Supplies UL Cert | |
Featured Product | PMT Series Panel Mount Power Supplies Power Management Solutions | |
3D Model | PMT-36V350W1Ax.stp | |
2D Drawing | PMT-36V350W1Ax.dxf | |
Online Catalog | PMT Series | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Converters | |
Manufacturer | Delta Electronics | |
Series | PMT | |
Part Status | Active | |
Type | Enclosed | |
Number of Outputs | 1 | |
Voltage - Input | 90 ~ 132 VAC, 180 ~ 264 VAC | |
Voltage - Output 1 | 36V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 9.7A | |
Power (Watts) | 350W | |
Applications | ITE (Commercial) | |
Voltage - Isolation | 3kV (3000V) | |
Efficiency | 87.5% | |
Operating Temperature | -10°C ~ 70°C (With Derating) | |
Features | Adjustable Output | |
Mounting Type | Chassis Mount | |
Size / Dimension | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | |
Minimum Load Required | - | |
Approvals | CB, CE, cURus, TUVgs | |
Power (Watts) - Max | 349W | |
Standard Package | 12 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PMT-36V350W1AR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PMT-36V350W1AR is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of PMT-36V350W1AR is new and unused, you can buy PMT-36V350W1AR Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PMT-36V350W1AR.
