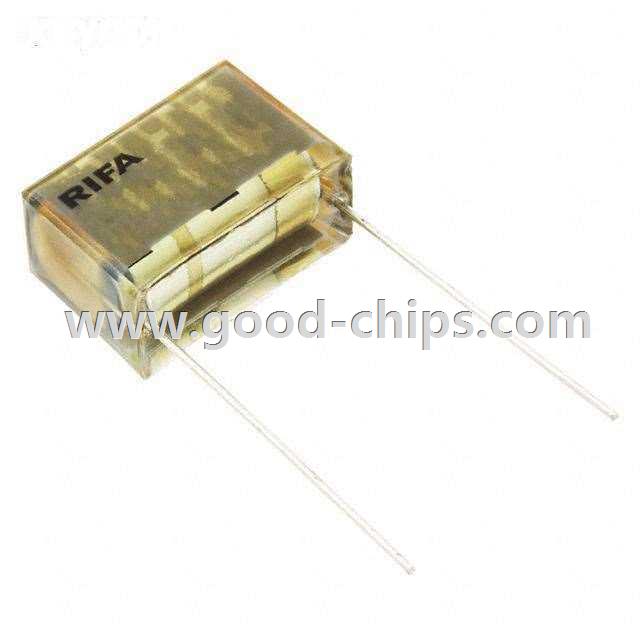

| Manufacturer Part Number: | PMR209MC6220M100R30 |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9410 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC EMI Filter 1st Order Low Pass 1 Channel R = 100 Ohms, C = 0.22µF Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PMR209MC6220M100R30 Datasheet |
| Internal Part Number | 898-PMR209MC6220M100R30 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | PMR209 Series | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Kemet | |
| Series | PMR209 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Low Pass | |
| Filter Order | 1st | |
| Technology | RC | |
| Number of Channels | 1 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | - | |
| Resistance - Channel (Ohms) | 100 | |
| Current | - | |
| Values | R = 100 Ohms, C = 0.22µF | |
| ESD Protection | No | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | General Purpose | |
| Voltage - Rated | 250VAC | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 0.945" L x 0.299" W (24.00mm x 7.60mm) | |
| Height | 0.551" (14.00mm) | |
| Standard Package | 150 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PMR209MC6220M100R30 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PMR209MC6220M100R30 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of PMR209MC6220M100R30 is new and unused, you can buy PMR209MC6220M100R30 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PMR209MC6220M100R30.
