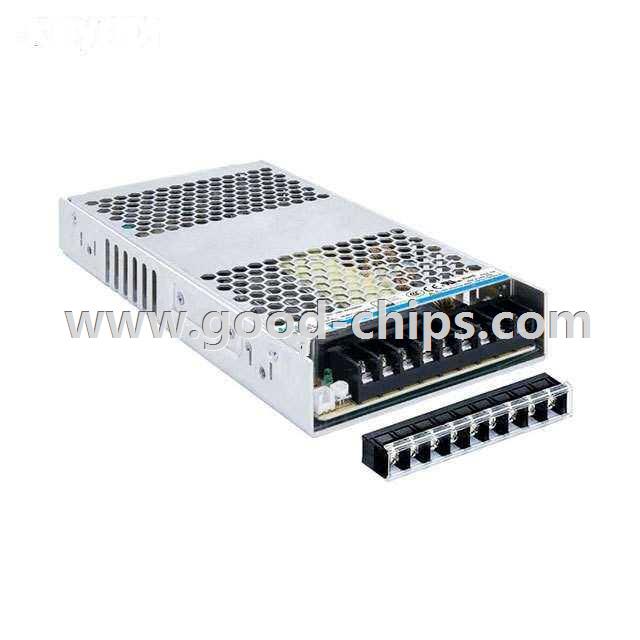

| Manufacturer Part Number: | PMR-4V320WDCA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 4.2V 320W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PMR-4V320WDCA Datasheet |
| Internal Part Number | 898-PMR-4V320WDCA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | PMx-4V320WDx CB Test Cert PMx-4V320WDx EC Declaration of Conformity PMx-4V320WDx TUV Cert Standard Power Supplies UL Cert | |
| Product Training Modules | PMR Series of Low Profile Panel Mount Power Supplies | |
| Featured Product | Power Management Solutions | |
| 3D Model | PMR-4V320WDxA.stp | |
| 2D Drawing | PMR-4V320WDxA.dxf | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | PMR | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 88 ~ 264 VAC | |
| Voltage - Output 1 | 4.2V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 60A | |
| Power (Watts) | 320W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 83.5% | |
| Operating Temperature | -10°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, PFC, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | |
| Minimum Load Required | - | |
| Approvals | CB, CE, CCC, cURus, TUV | |
| Power (Watts) - Max | 252W | |
| Standard Package | 12 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PMR-4V320WDCA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PMR-4V320WDCA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of PMR-4V320WDCA is new and unused, you can buy PMR-4V320WDCA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PMR-4V320WDCA.
