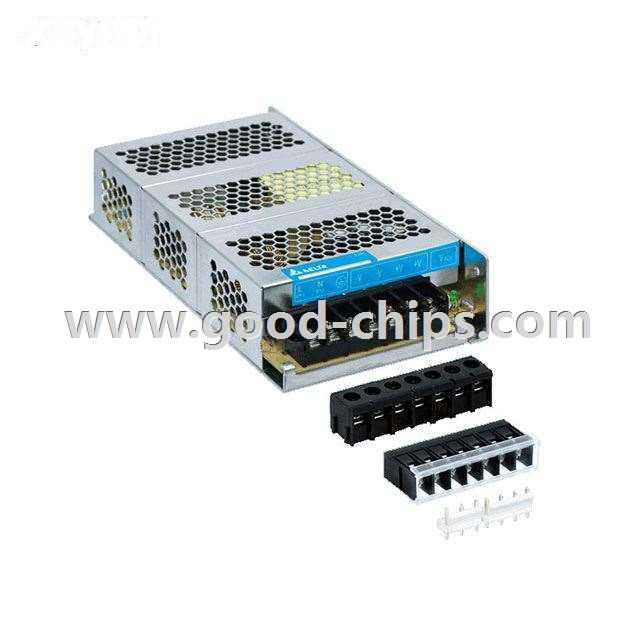

Manufacturer Part Number: | PMC-48V150W1BL |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | AC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 48V 150W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PMC-48V150W1BL Datasheet |
Internal Part Number | 898-PMC-48V150W1BL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | PMC-xxVI50WIBx CB Test Cert PMC-48V150W1Bx EC Declaration of Conformity PMC-xxV150W1Bx SIQ Cert Standard Power Supplies UL Cert | |
Product Training Modules | PMC Series: Panel Mount Power Supplies | |
Featured Product | Power Management Solutions | |
3D Model | PMC-48V150W1Bx.stp | |
2D Drawing | PMC-48V150W1Bx.dxf | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Converters | |
Manufacturer | Delta Electronics | |
Series | PMC | |
Part Status | Active | |
Type | Enclosed | |
Number of Outputs | 1 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 48V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 3.125A | |
Power (Watts) | 150W | |
Applications | ITE (Commercial) | |
Voltage - Isolation | 3kV (3000V) | |
Efficiency | 91% | |
Operating Temperature | -10°C ~ 70°C (With Derating) | |
Features | Adjustable Output, DC Input Capable, PFC, Universal Input | |
Mounting Type | Chassis Mount | |
Size / Dimension | 7.01" L x 3.82" W x 1.50" H (178.0mm x 97.0mm x 38.0mm) | |
Minimum Load Required | - | |
Approvals | CB, CCC, CE, cURus, SIQ | |
Power (Watts) - Max | 150W | |
Standard Package | 80 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PMC-48V150W1BL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PMC-48V150W1BL is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of PMC-48V150W1BL is new and unused, you can buy PMC-48V150W1BL Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PMC-48V150W1BL.
