| Manufacturer Part Number: | PM5RDW12.0 |
|---|---|
| Manufacturer: | Bivar Inc. |
| Product Category: | Panel Indicators, Pilot Lights |
| Available Quantity: | 9141 Pieces |
| Unit Price: | Quote by Email |

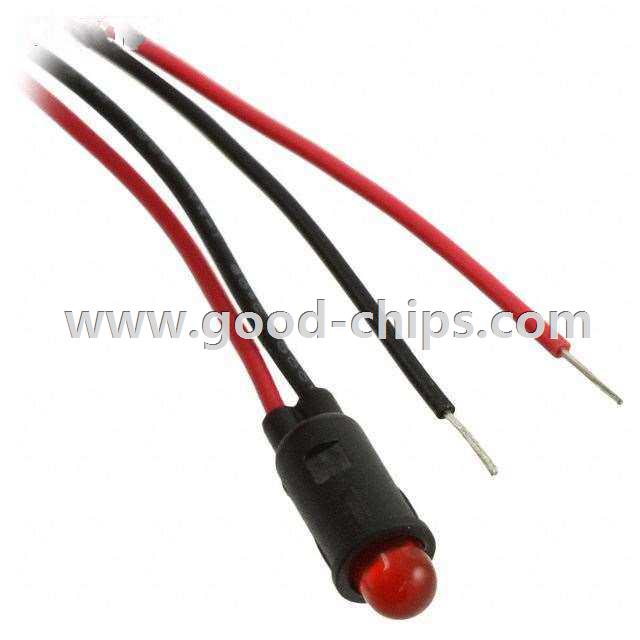

| Description: | LED Panel Indicator Red Diffused 45° 2.1V 20mA Round with Domed Top, 5mm (T-1 3/4) Wire Leads - 12" (304.80mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PM5RDW12.0 Datasheet |
| Internal Part Number | 898-PM5RDW12.0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | PM5xxWxx.x.igs | |
| Online Catalog | Press Fit LED Panel Assemblies | |
| Category | Optoelectronics | |
| Family | Panel Indicators, Pilot Lights | |
| Manufacturer | Bivar Inc. | |
| Series | PM5 | |
| Part Status | Active | |
| Type | LED | |
| Lamp Color | Red | |
| Lens Color | Red | |
| Lens Transparency | Diffused | |
| Ratings | Vf (Typ), If (Max) | |
| Voltage | 2.1V | |
| Current | 20mA | |
| Panel Cutout Shape | Round | |
| Panel Cutout Dimensions | 0.25" (6.35mm) | |
| Lens Style/Size | Round with Domed Top, 5mm (T-1 3/4) | |
| Millicandela Rating | 2mcd | |
| Wavelength - Peak | 700nm | |
| Viewing Angle | 45° | |
| Termination Style | Wire Leads - 12" (304.80mm) | |
| Ingress Protection | - | |
| Features | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PM5RDW12.0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PM5RDW12.0 is in stock for immediate shipping now. We are the distributor of Bivar Inc. all series components. The condition of PM5RDW12.0 is new and unused, you can buy PM5RDW12.0 Bivar Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PM5RDW12.0.
