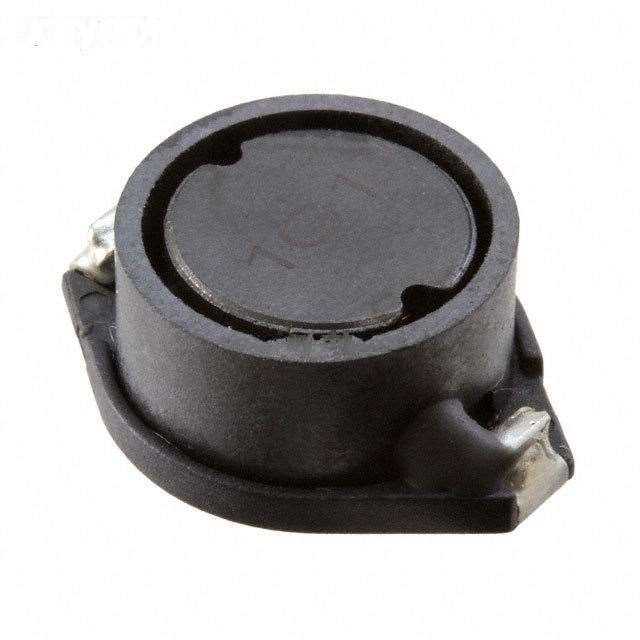

| Manufacturer Part Number: | PM5022S-471M |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 470µH Shielded Wirewound Inductor 730mA 1.08 Ohm Max Nonstandard |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PM5022S-471M Datasheet |
| Internal Part Number | 898-PM5022S-471M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | JW Miller Models Oct/2007 | |
| PCN Design/Specification | SMD Models Transition Oct/2008 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | PM5022S | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 470µH | |
| Tolerance | ±20% | |
| Current Rating | 730mA | |
| Current - Saturation | 1.1A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 1.08 Ohm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.732" L x 0.602" W (18.60mm x 15.30mm) | |
| Height - Seated (Max) | 0.299" (7.60mm) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PM5022S-471M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PM5022S-471M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PM5022S-471M is new and unused, you can buy PM5022S-471M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PM5022S-471M.
