| Manufacturer Part Number: | PM5-A12R12V |
|---|---|
| Manufacturer: | Bivar Inc. |
| Product Category: | Panel Indicators, Pilot Lights |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

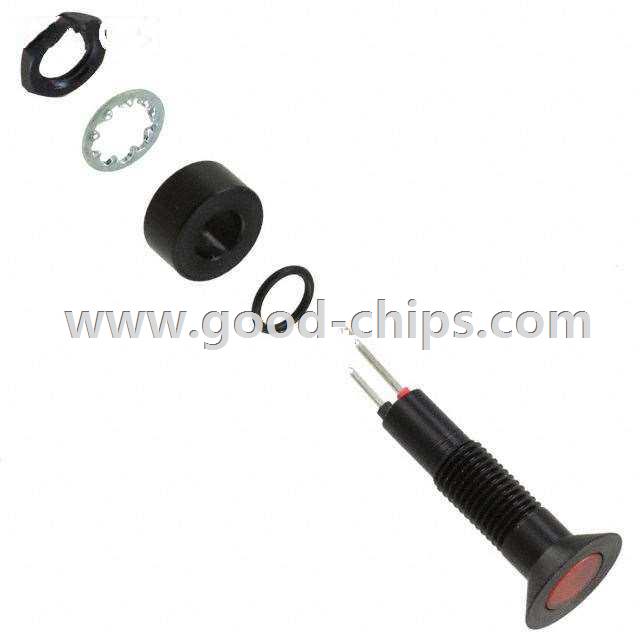

| Description: | LED Panel Indicator Red Fresnel 120° 12V 20mA Round with Flat Top, 6.70mm PC Pin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PM5-A12R12V Datasheet |
| Internal Part Number | 898-PM5-A12R12V | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Panel Mount Indicators | |
| Online Catalog | Round Panel Mount Indicator | |
| Category | Optoelectronics | |
| Family | Panel Indicators, Pilot Lights | |
| Manufacturer | Bivar Inc. | |
| Series | PM5 | |
| Part Status | Active | |
| Type | LED | |
| Lamp Color | Red | |
| Lens Color | Red | |
| Lens Transparency | Fresnel | |
| Ratings | DC | |
| Voltage | 12V | |
| Current | 20mA | |
| Panel Cutout Shape | Round | |
| Panel Cutout Dimensions | 0.24" (6.10mm) | |
| Lens Style/Size | Round with Flat Top, 6.70mm | |
| Millicandela Rating | 39mcd | |
| Wavelength - Peak | 660nm | |
| Viewing Angle | 120° | |
| Termination Style | PC Pin | |
| Ingress Protection | IP67 | |
| Features | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PM5-A12R12V | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PM5-A12R12V is in stock for immediate shipping now. We are the distributor of Bivar Inc. all series components. The condition of PM5-A12R12V is new and unused, you can buy PM5-A12R12V Bivar Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PM5-A12R12V.
