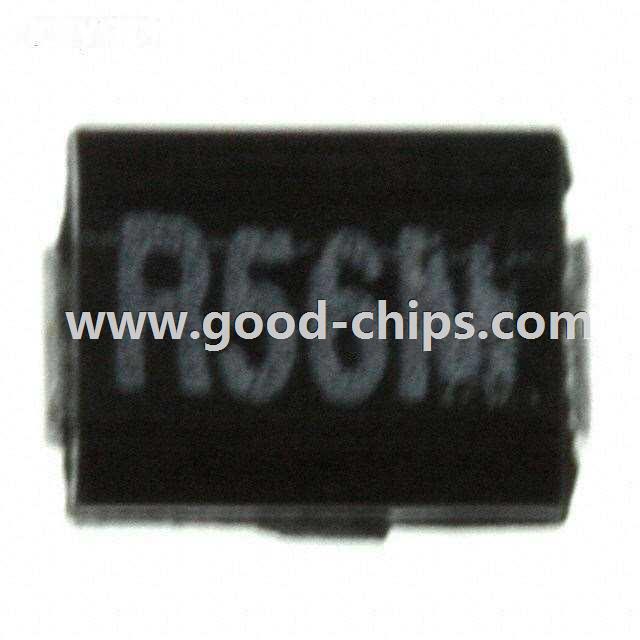

| Manufacturer Part Number: | PM40-R56M |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 560nH Unshielded Molded Inductor 450mA 550 mOhm Max 1812 (4532 Metric) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PM40-R56M Datasheet |
| Internal Part Number | 898-PM40-R56M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | JW Miller Models Oct/2007 | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | PM40 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Molded | |
| Material - Core | Non-Magnetic | |
| Inductance | 560nH | |
| Tolerance | ±20% | |
| Current Rating | 450mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 550 mOhm Max | |
| Q @ Freq | 30 @ 25.2MHz | |
| Frequency - Self Resonant | 180MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 25.2MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1812 (4532 Metric) | |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
| Height - Seated (Max) | 0.126" (3.20mm) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PM40-R56M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PM40-R56M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PM40-R56M is new and unused, you can buy PM40-R56M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PM40-R56M.
