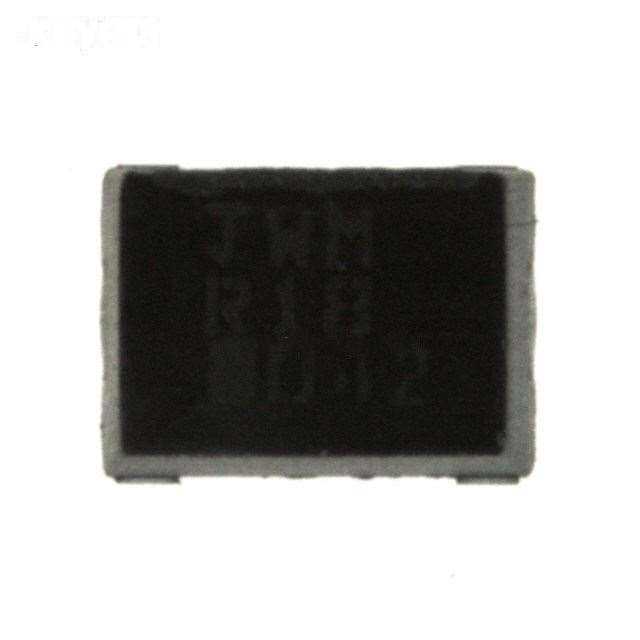

Manufacturer Part Number: | PM40-R18M |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 180nH Unshielded Molded Inductor 450mA 280 mOhm Max 1812 (4532 Metric) |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PM40-R18M Datasheet |
Internal Part Number | 898-PM40-R18M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | JW Miller Models Oct/2007 | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | PM40 | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | Molded | |
Material - Core | Non-Magnetic | |
Inductance | 180nH | |
Tolerance | ±20% | |
Current Rating | 450mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 280 mOhm Max | |
Q @ Freq | 30 @ 25.2MHz | |
Frequency - Self Resonant | 400MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 25.2MHz | |
Mounting Type | Surface Mount | |
Package / Case | 1812 (4532 Metric) | |
Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
Height - Seated (Max) | 0.126" (3.20mm) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PM40-R18M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PM40-R18M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PM40-R18M is new and unused, you can buy PM40-R18M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PM40-R18M.
