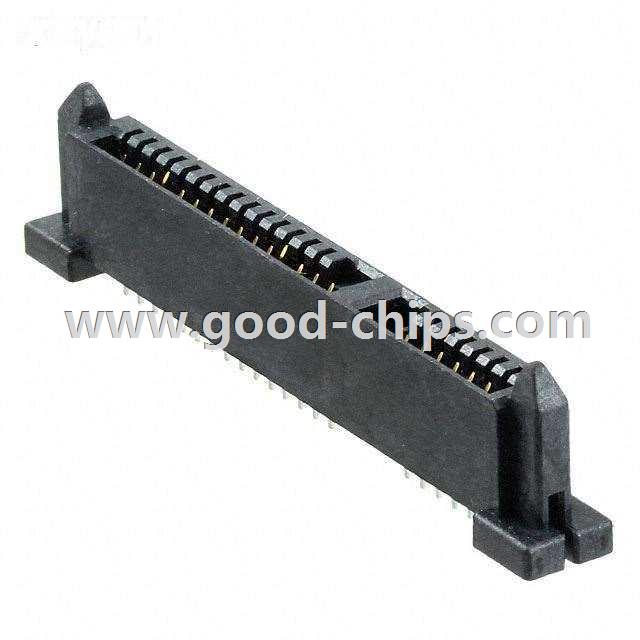

| Manufacturer Part Number: | PM3R022UQ2 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Pluggable Connectors |
| Available Quantity: | 9024 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN RCPT 22POS SATA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PM3R022UQ2 Datasheet |
| Internal Part Number | 898-PM3R022UQ2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | JAE-TW 8/Jan/2014 | |
| Category | Connectors, Interconnects | |
| Family | Pluggable Connectors | |
| Manufacturer | JAE Electronics | |
| Series | PM3 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Style | Receptacle | |
| Connector Type | SATA | |
| Number of Positions | 22 | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Standard Package | 60 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PM3R022UQ2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PM3R022UQ2 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of PM3R022UQ2 is new and unused, you can buy PM3R022UQ2 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PM3R022UQ2.
