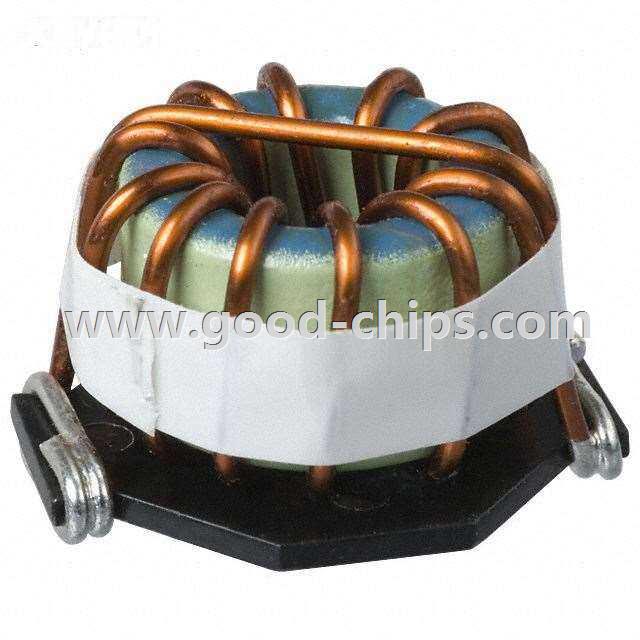

| Manufacturer Part Number: | PM2120-102K-RC |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 10393 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1mH Unshielded Toroidal Inductor 2.5A 215 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PM2120-102K-RC Datasheet |
| Internal Part Number | 898-PM2120-102K-RC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Product Overview | |
| RoHS Information | PM2120 Series Material Declaration | |
| 3D Model | PM2120-102K-RC.stp | |
| PCN Packaging | Label Change 30/Jun/2015 | |
| Online Catalog | PM2120 Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | PM2120 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Toroidal | |
| Material - Core | Iron | |
| Inductance | 1mH | |
| Tolerance | ±10% | |
| Current Rating | 2.5A | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 215 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Frequency - Test | 1kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 1.200" L x 1.000" W (30.50mm x 25.40mm) | |
| Height - Seated (Max) | 0.820" (20.83mm) | |
| Standard Package | 77 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PM2120-102K-RC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PM2120-102K-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PM2120-102K-RC is new and unused, you can buy PM2120-102K-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PM2120-102K-RC.
