| Manufacturer Part Number: | PM13560S-100M-RC |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |

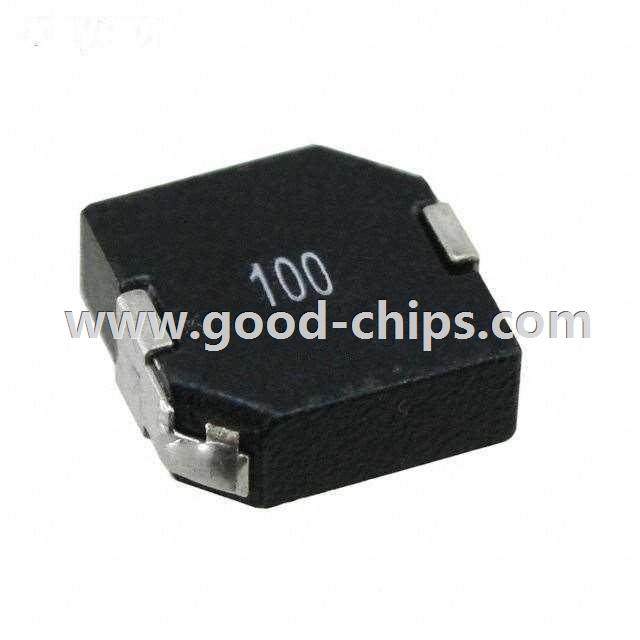

| Description: | 10µH Shielded Wirewound Inductor 9A 25.5 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PM13560S-100M-RC Datasheet |
| Internal Part Number | 898-PM13560S-100M-RC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Product Overview | |
| RoHS Information | 0210200931 Cert of Compliance PM13560S Material Declaration | |
| 3D Model | PM13560S.stp | |
| PCN Design/Specification | SMD Models Transition Oct/2008 | |
| Online Catalog | PM12645S-13666S Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | PM13560S | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Iron | |
| Inductance | 10µH | |
| Tolerance | ±20% | |
| Current Rating | 9A | |
| Current - Saturation | 16A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 25.5 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 150°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.547" L x 0.531" W (13.90mm x 13.50mm) | |
| Height - Seated (Max) | 0.232" (5.90mm) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PM13560S-100M-RC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
