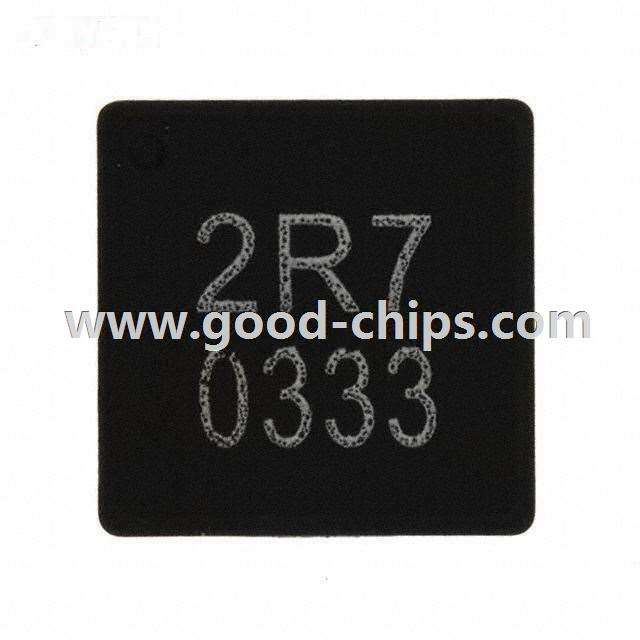

| Manufacturer Part Number: | PM12645S-2R7M |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.7µH Shielded Wirewound Inductor 12A 4.3 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PM12645S-2R7M Datasheet |
| Internal Part Number | 898-PM12645S-2R7M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | JW Miller Models Oct/2007 | |
| PCN Design/Specification | SMD Models Transition Oct/2008 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | PM12645S | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Wirewound | |
| Material - Core | - | |
| Inductance | 2.7µH | |
| Tolerance | ±20% | |
| Current Rating | 12A | |
| Current - Saturation | - | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 4.3 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 150°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.547" L x 0.531" W (13.90mm x 13.50mm) | |
| Height - Seated (Max) | 0.232" (5.90mm) | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PM12645S-2R7M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PM12645S-2R7M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PM12645S-2R7M is new and unused, you can buy PM12645S-2R7M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PM12645S-2R7M.
