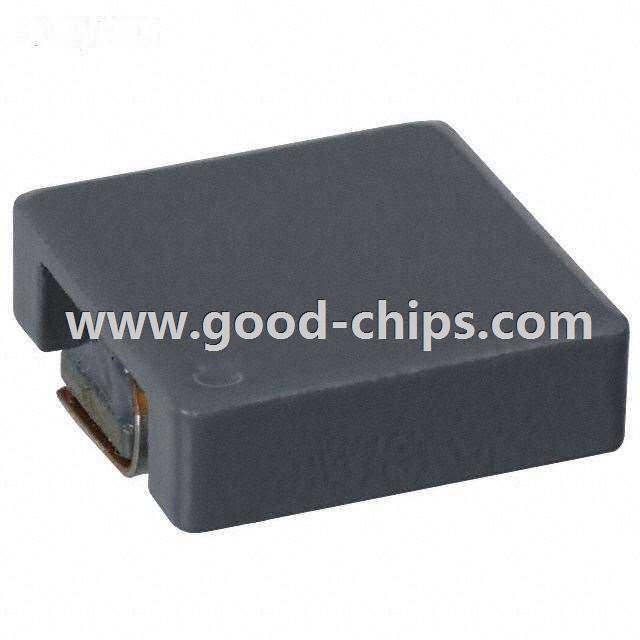

| Manufacturer Part Number: | PM12639S-R67M-RC |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9610 Pieces |
| Unit Price: | Quote by Email |
| Description: | 670nH Shielded Wirewound Inductor 28A 2.5 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PM12639S-R67M-RC Datasheet |
| Internal Part Number | 898-PM12639S-R67M-RC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Product Overview | |
| RoHS Information | PM12639S Material Declaration | |
| 3D Model | PM12639S.stp | |
| PCN Design/Specification | SMD Models Transition Oct/2008 | |
| Online Catalog | PM12645S-13666S Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | PM12639S | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Iron | |
| Inductance | 670nH | |
| Tolerance | ±20% | |
| Current Rating | 28A | |
| Current - Saturation | 32A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 2.5 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 72MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 150°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.547" L x 0.531" W (13.90mm x 13.50mm) | |
| Height - Seated (Max) | 0.146" (3.70mm) | |
| Standard Package | 600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PM12639S-R67M-RC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PM12639S-R67M-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PM12639S-R67M-RC is new and unused, you can buy PM12639S-R67M-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PM12639S-R67M-RC.
