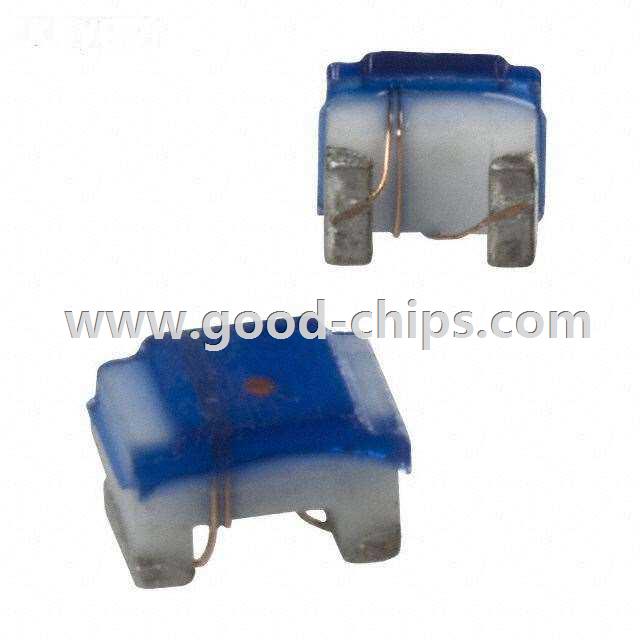

| Manufacturer Part Number: | PM0805-82NK |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 82nH Unshielded Wirewound Inductor 400mA 420 mOhm Max 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PM0805-82NK Datasheet |
| Internal Part Number | 898-PM0805-82NK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | JW Miller Models Oct/2007 | |
| PCN Design/Specification | SMD Models Transition Oct/2008 | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | PM0805 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Wirewound | |
| Material - Core | Ceramic | |
| Inductance | 82nH | |
| Tolerance | ±10% | |
| Current Rating | 400mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 420 mOhm Max | |
| Q @ Freq | 65 @ 500MHz | |
| Frequency - Self Resonant | 1.3GHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 150MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0805 (2012 Metric) | |
| Size / Dimension | 0.083" L x 0.059" W (2.10mm x 1.50mm) | |
| Height - Seated (Max) | 0.059" (1.50mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PM0805-82NK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PM0805-82NK is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PM0805-82NK is new and unused, you can buy PM0805-82NK Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PM0805-82NK.
