Manufacturer Part Number: | PL75-R-PC |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9021 Pieces |
Unit Price: | Quote by Email |

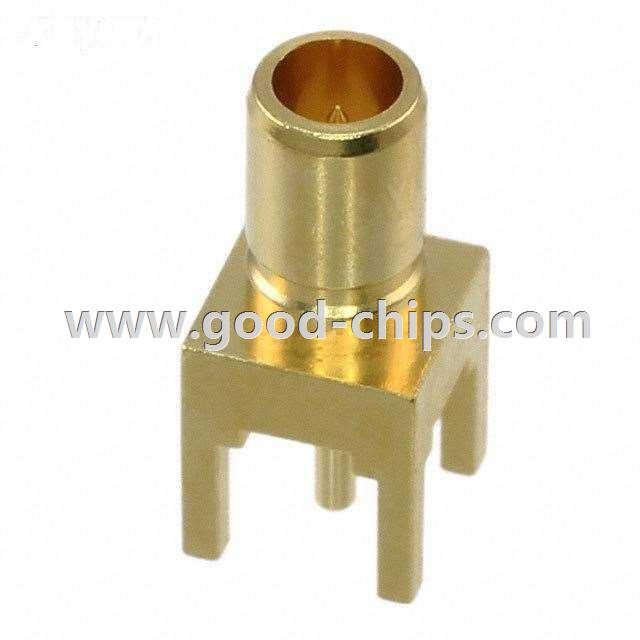

Description: | Ultra Miniature Coaxial Connector Receptacle, Male Pin 75 Ohm Through Hole Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PL75-R-PC Datasheet |
Internal Part Number | 898-PL75-R-PC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | UMCC (Ultra Miniature Coax Connectors), PL75 Series | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Hirose Electric Co Ltd | |
Series | PL75 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | Ultra Miniature Coaxial | |
Connector Type | Receptacle, Male Pin | |
Contact Termination | Solder | |
Shield Termination | Solder | |
Impedance | 75 Ohm | |
Mounting Type | Through Hole | |
Cable Group | - | |
Fastening Type | Snap-On | |
Frequency - Max | 3GHz | |
Features | - | |
Housing Color | Gold | |
Ingress Protection | - | |
Body Material | Brass | |
Body Finish | Gold | |
Center Contact Material | Phosphor Bronze | |
Center Contact Plating | Gold | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Voltage Rating | - | |
Operating Temperature | -30°C ~ 85°C | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PL75-R-PC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PL75-R-PC is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of PL75-R-PC is new and unused, you can buy PL75-R-PC Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PL75-R-PC.
